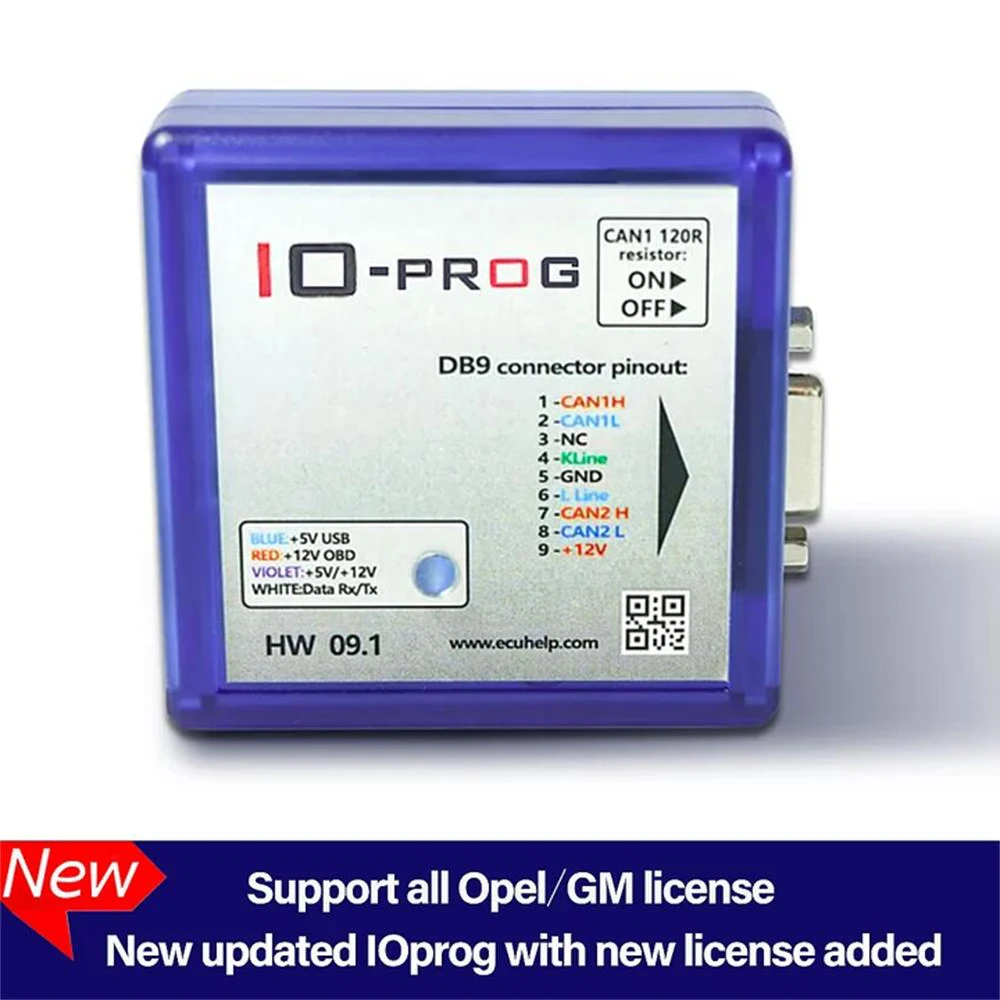

IO PROG Full PSA Terminal, Ford, GM/Opel ECU Programmer



I / O Prog ECU Programmer Advantages:

1. Read and flash the FLASH and EEPROM memory images using the diagnostic connector link.

2. A combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device

3. Checksums testing and correction. Safe reading and flashing

4.Software cannot be upgraded online

5.This IO Prog is only available with GM / OPEL license now, not full cars

Software Download Support ( Software for IO Prog hardware owners）

6. Software can read and write the memory of OPEL / GM ECUs via OBD or on Bench. Also, the software has bootpin recovery mode.

7. The ECU EEPROM EDITOR allows you to extract PINCODE and do other functions with EEPROM DUMP.

8. Software and wiring diagrams is available to be downloaded as well.

Software download:

//terabox.com/s/1aIBLkANW6wr_pjhVP531Cw

Please copy the link on PC and open it in a browser to download!

Advantages of I/O Terminal:

With its integrated K-line and CAN interfaces, I/O Terminal ensures exceptional software compatibility, eliminating the need for expensive J2534 devices. It is capable of reading and flashing of FLASH and EEPROM memory images through the diagnostic connector link. Moreover, it can do auto checksum and correction, ensuring a secure and reliable reading and flashing process.ECUHELP IO-PROG Opel GM ECU Programmer via OBD / on Bench (Basic Version)

IO-PROG Terminal MULTITOOL function:

1. Read and write OPEL / GM ECU via OBD or on Bench .

2. Software has bootpin recovery mode.

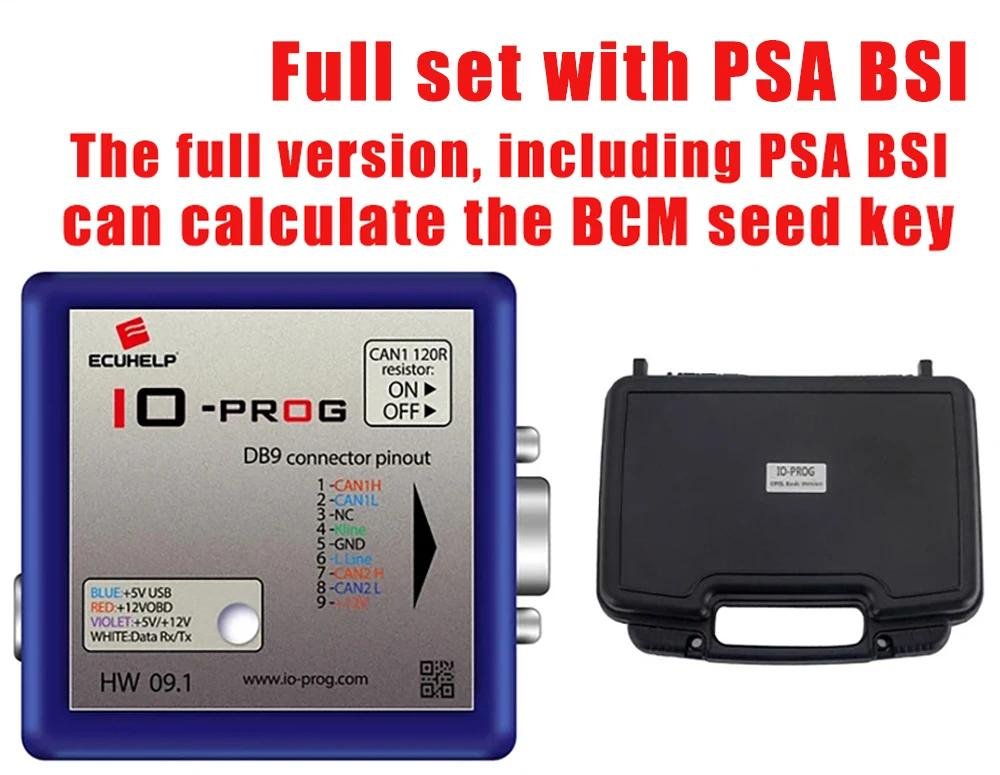

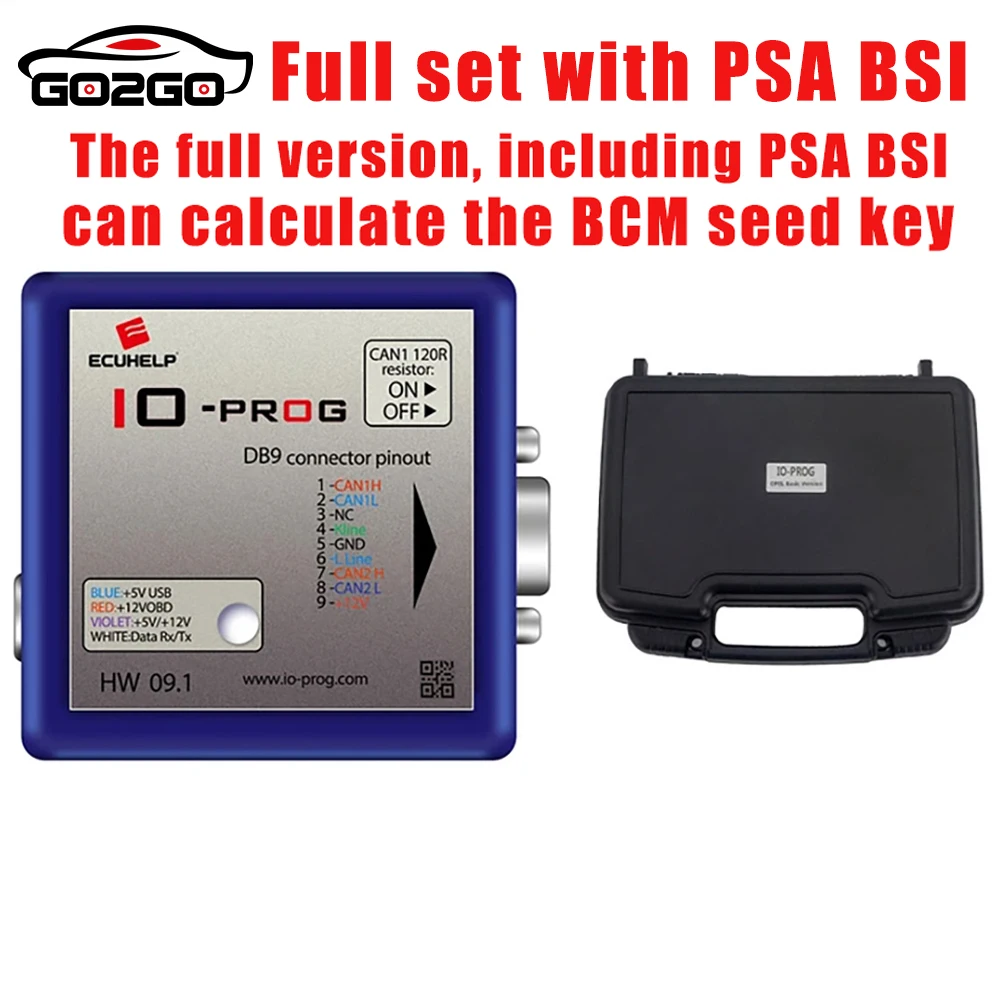

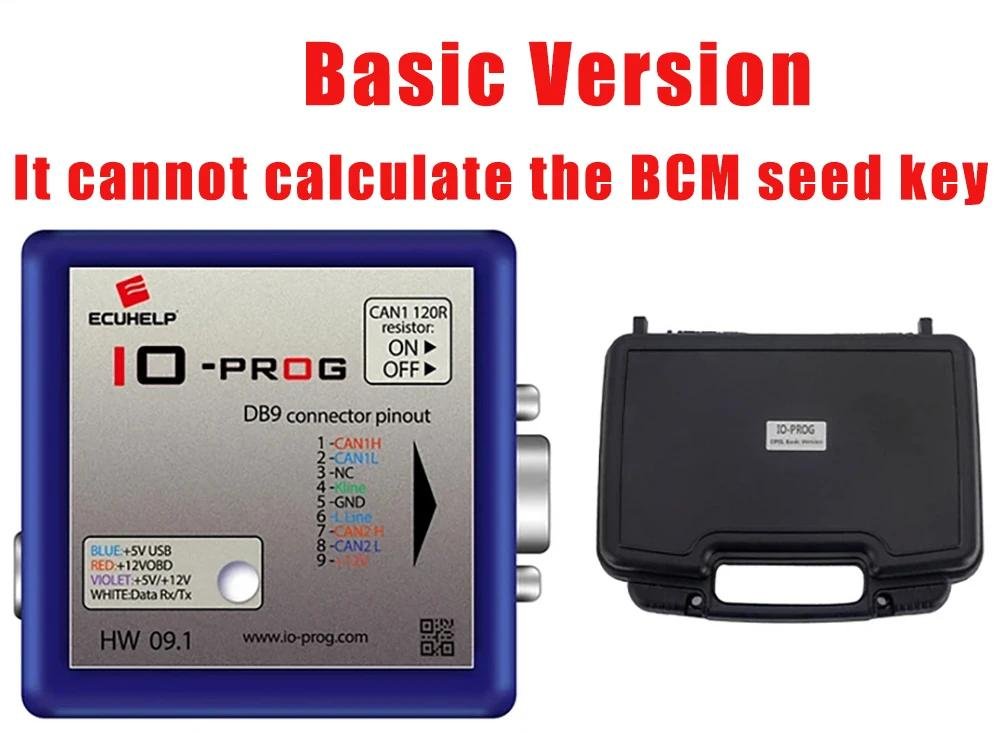

Currently, PSA, partial Ford and Opel ECU licenses are available in the basic edition.Full set with PSA BSI

ln addition, fixed the bug that opel/GMDelphi BCM could not read.

OPEL BCM DELPHI 70F3238 + 93C86

OPEL BCM DELPHI 70F3379 + 93C86

OPEL BCM DELPHI 70F3533/70F3634:



MULTITOOL OPEL/GM ECU

Reading/writing of OPEL/GM ECUs by CAN (OBD or wired on the bench) . Also software has bootpin recovery mode.

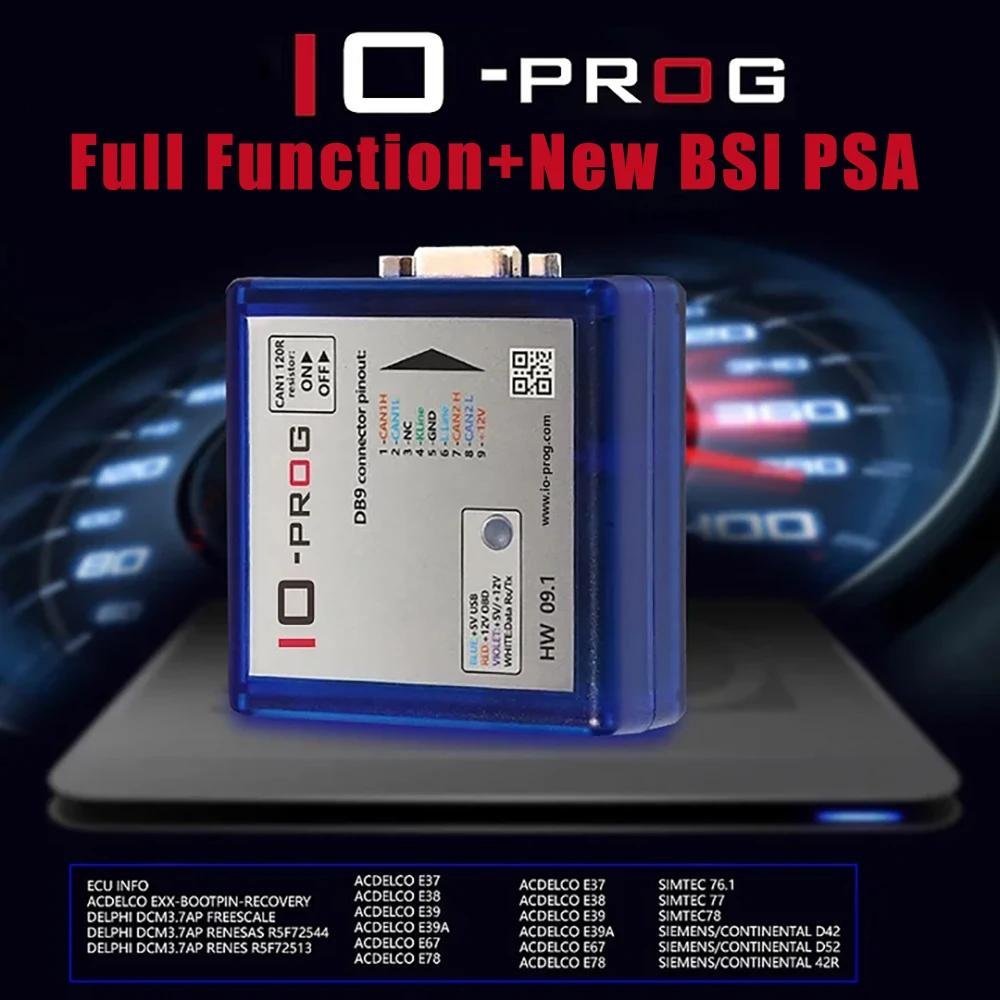

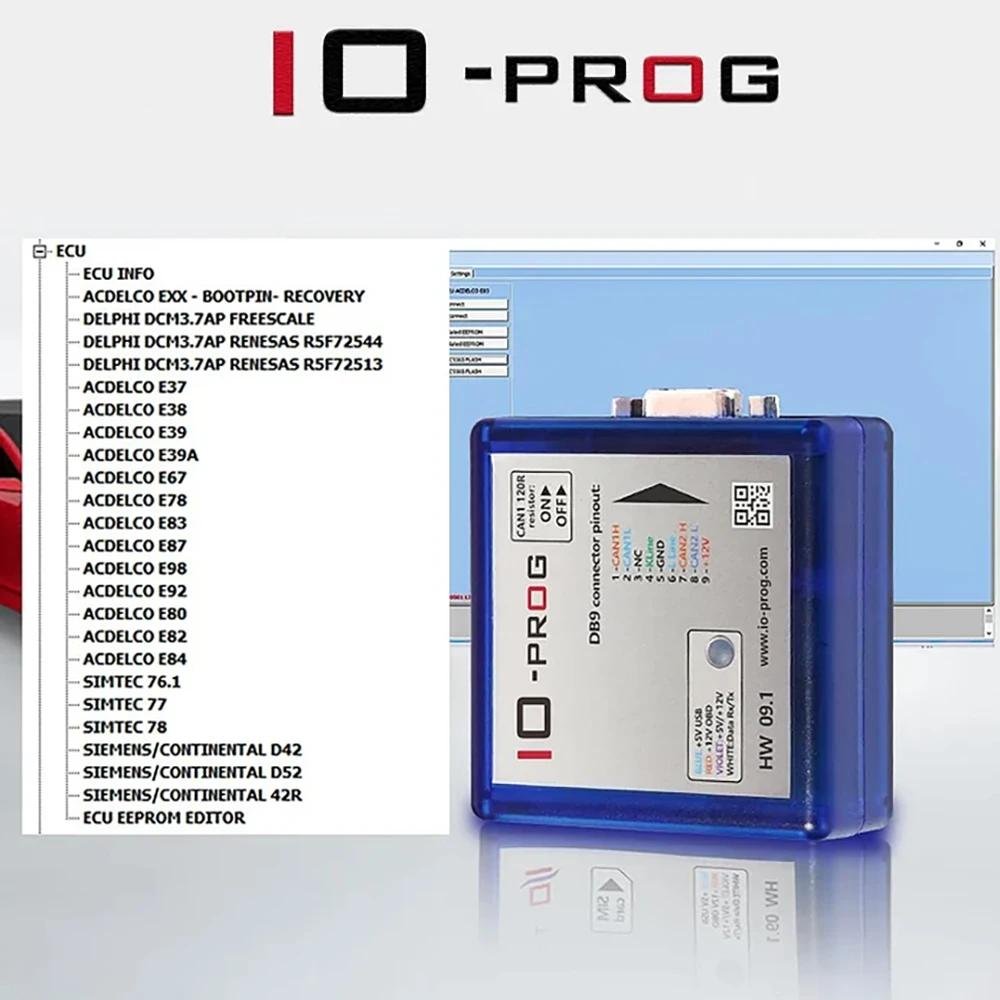

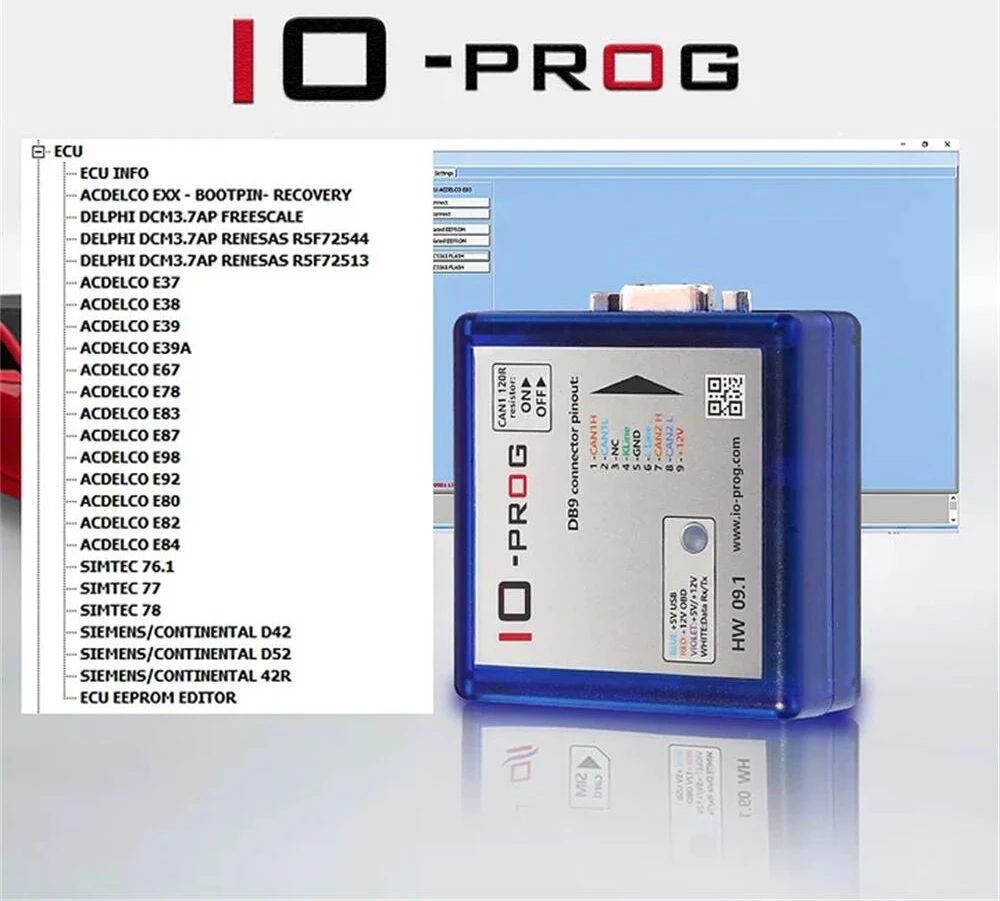

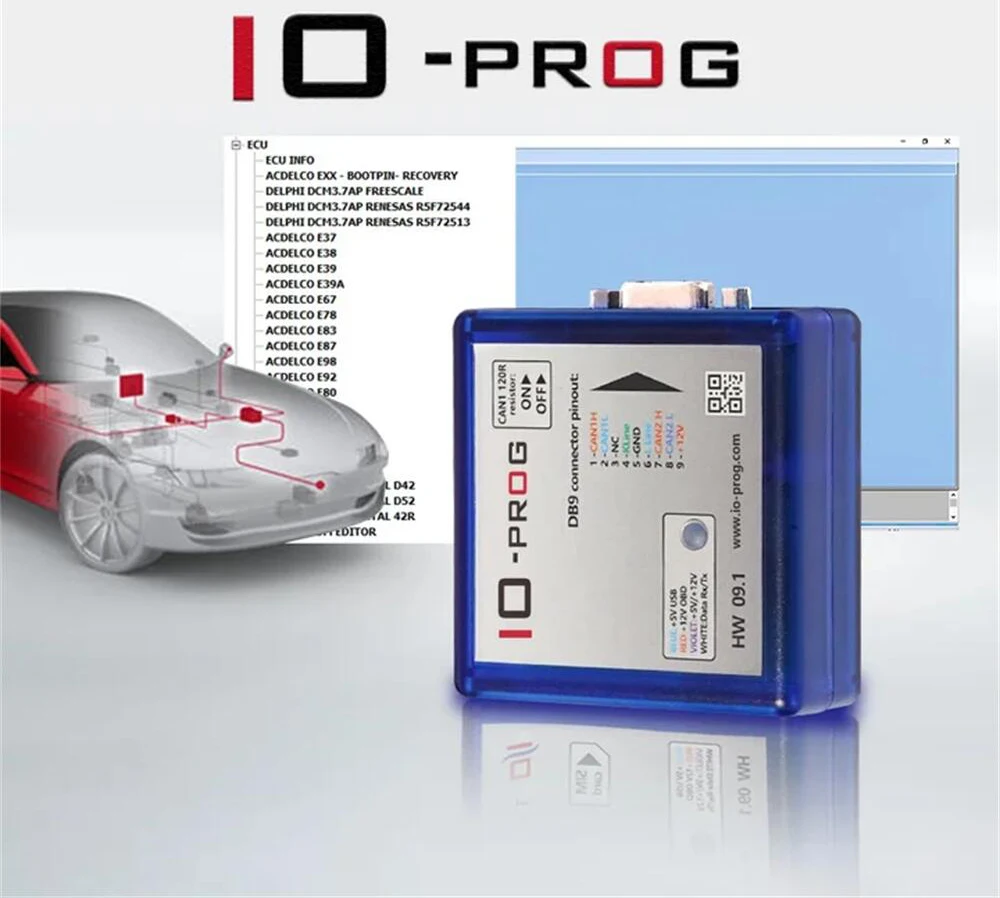

Supported OPEL/GM ECU types:

ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD)

ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);

ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);

ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);

ACDELCO (BOSCH)E84MPC5676 FLASH R/W.CAN (OBD);

EEPROM DUMP VIEWER, EDITOR.



New liecense added full Opel license version as below:

MULTITOOL OPEL BCM

Supported BCM/BSI types



OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;

OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;

OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;

OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

MULTITOOL OPEL/GM TCM

Reading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).

Supported OPEL/GM TCM types:

TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90

FULL M58BW016DB FLASH R/W. CAN (OBD).

MULTITOOL OPEL/GM EPS

Reading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench).

EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
