For CAN-BUS Cars IMMO Emulator OBD2 Interface Diagnostic Tools Sensor IMMO For K-Line Cars OBD Diagnostic Tools

Original price was: 4,99$.Current price is: 0,99$.

Ships From	China
Color	For CAN-BUS CarsFor K-LINE Cars Clear

2295 people have viewed this item
165 people have added this item to cart
96 people have bought this item

SKU: 3256806032641473 Category: Emuliators (Bypass Airbags, IMMO and more...)

For CAN-BUS Cars IMMO Emulator OBD2 Interface Diagnostic Tools Sensor IMMO For K-Line Cars OBD Diagnostic Tools

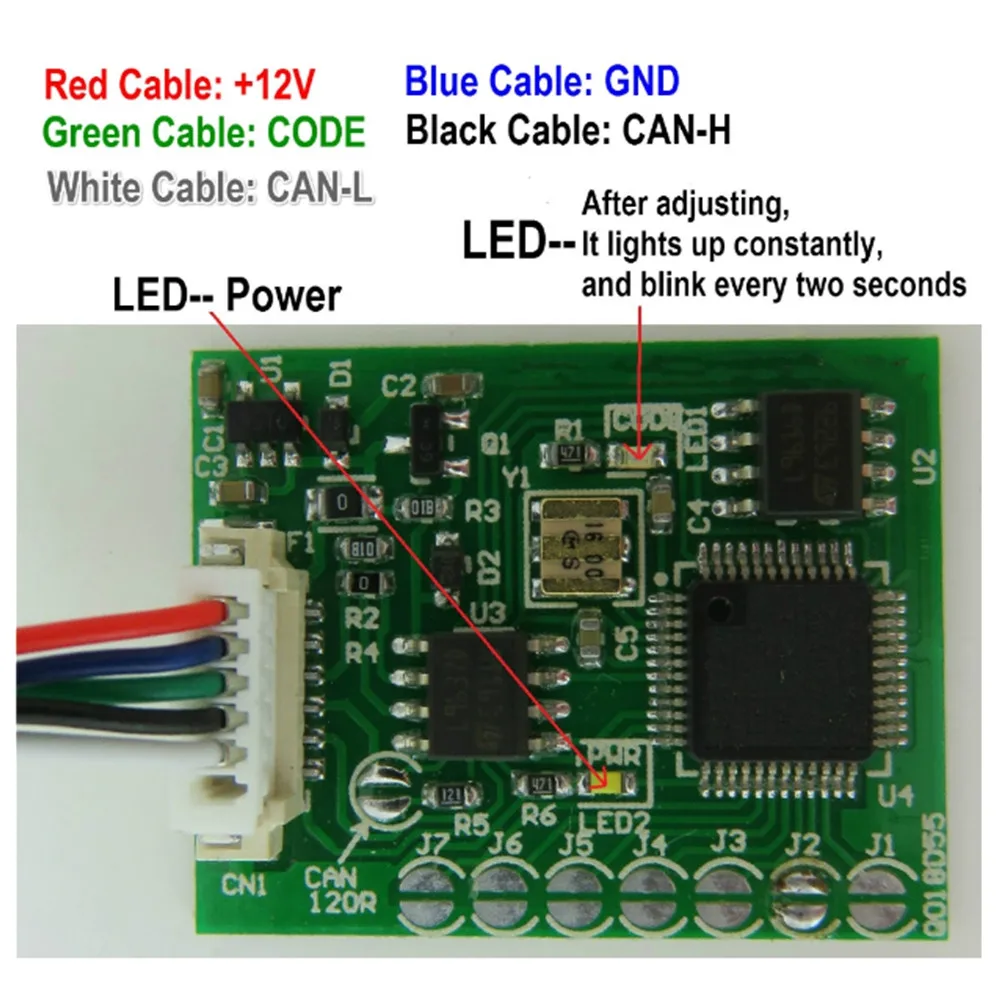

What is the different module for CAN-BUS Cars and for K-LINE Cars?

Please kinldy check below photo,it will show the bit difference.

Above is CAN-BUS ,it Works For CAN-BUS cars,it has 120 ohm resistance on the PCB

Below is K-Line ,it Works For K-LINE Cars(If buyer want to use this K-line emulator for CAN-BUS CARS,buyer need solder 120 ohm resistance yourself in the future.)

Emulator New Universal IMMO Emulator Function:

1. For VW automatic immo OFF

Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.

Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6 to 15.

2. For VW automatic immo ON

Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.

Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6 to 15.

3. For VW without CAN

for Audi, for Seat, for Skoda, for Volkswagen

W1 and W2 systems up to around 2001. EDC15 and 5-socket LT28/LT35 ECUs – when the chassis numbers are not entered – even up to 2006. Diesel and petrol Ford cars with VW systems (the VW symbol is visible on the ECU).

4. For VW – For Hitachi

forAudi, forSeat, forSkoda, forVolkswagen

It is suitable for VAG group cars with Hitachi ECU to about 1997.

5. For VW – Valve Code

forAudi, forSeat, forSkoda, forVolkswagen

To unlock the valve code on injection pump in vehicles VW 1.9 Diesel.

6. For VW EDC15 immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006, and even 2008 (except Audi with coded pump)

Suitable for vehicles with 2-socket ECUs.

7. For VW EDC15 immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006, and even 2008 (except Audi with coded pump)

Suitable for vehicles with 2-socket ECUs.

8. For VW EDC16 K-LINE immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

9. For VW EDC16 K-LINE immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

10. For VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen

Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

11. For VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen

Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

12. For VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen

Use: Suitable for vehicles with 2-socket ECUs

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

13. For VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen

Use: Suitable for vehicles with 2-socket ECUs

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

14. For VW ME7 immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen

Use: Suitable for vehicles with ME7 for Bosch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008

15. For VW ME7 immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen

Use: Suitable for vehicles with ME7 for Bosch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008

16. For Chrysler

Use:

– for Chrysler Voyager 2.5TD 1999-2001

– for Dodge Caravan 2.5TD 1999-2001

– for Jeep Cherokee 2.5TD 1999-2001

17. For Citroen, for Peugeot with CAN

Use: EDC16 1.4 1.6 HDI with CAN

EDC15 HDI with CAN

18. For Daewoo 1

Use:

ECU with 2 white – red sockets

ECU with a blue socket

19. For Daewoo 2

Use:

Matiz SIEMENS, KEMSCO ECU

Tacuma KEMSCO ECU

Lanos 1.4 OHC hybrid ECU

Kalos SIRIUS D42 1.2 ECU

for Chevrolet Aveo 4R ECU 1.2 8V

20. For Fiat without CAN

Use:

for Fiat, for Citroen, for Peugeot diesel without CAN 2-socket ECU

for Alfa,for Lancia, for Fiat 1.9 Jtd 2.4 Jtd 5-socket ECU

for IAW49F Fiat Bravo 1.6 16V

for IAW 4AF Fiat Seicento, Panda 1.1 8V

for Lancia Kappa 2.0i 16V Turbo 0 261 203 792

for Lancia Kappa 2.0i 20V 0 261 203 670

for Lancia Kappa 2.4i 16V 0 261 203

for Lancia Kappa 3.0i 24V 0 261 203 482

21. For Fiat with CAN

ECU 5SF and 6F3

22. For Honda

Use:for Honda Accord, for CRV, for Civic and other (production year 1999-2002)

23. For Kia Sportage 2.0TD

for Kia Sportage 2.0 TD ECU ZEXEL immo with remote control

24. For Mercedes CR without CAN Infrared

Use: INFRARED IMMO

12-pin module + 2-pin CAN but only L connected (there is no CAN H) green and red LEDs flash in the mirror.

2.2 Diesel 1-socket Lucas

1.8 2.0 2.3 petrol hybrid SIEMENS ECU

2.0 petrol hybrid BOSCH ECU

25. For Mercedes CR1 with CAN WSP

Vito 2.2 Cdi 5-socket ECU

A-class 1.7 Cdi 5-socket ECU

EDC 1-socket ECU

2.5TD 2.9TD 3.0TD with mechanical and electronic ignition switch

for Bosch ECU with HC11E9

E-class 4- socket Lucas with mechanical and electronic ignition switch

A-Class VDO MSM ECU

1.4 1.6 1.9 gasoline

26. For Mercedes CR1 with CAN EZS

2-socket (white) VDO ECU with 24c02 memory

27. For Mercedes CR1 with CAN infrared

2-socket (black) VDO ECU with X24C01 memory

2-socket (yellow) VDO ECU with X24C02 memory

for 2-socket B–osch ECU with B58 (24LC02) memory

28. For Mercedes CR2 with CAN WSP

Sprinter 2.2 Cdi 2.7 Cdi

ML 2.7 Cdi 5 plugs – it starts automatically

it also works in 2.7 and 3.2 with electronic ignition switch – it starts automatically.

29. For Mercedes ESL – steering wheel column lock emulator.

The emulator works with Mercedes electronic ignition switch in older models (W202, W208, W210)and allows to check newer models (W203, W209, W211, Vito 639).

The emulator can also be used to verify the original electronic ignition switch and steering column lock.

30. For Mercedes ESL2 – steering wheel column lock emulator.

The emulator works with Mercedes electronic ignition switch in W906 (Sprinter II, VW Crafter), W639, W211, W209, W202, W208, W210

Works with ignition switchs numbered:

A 906 545 64 08

639 545 05 08

208 545 00 08

208 545 01 08

208 545 02 08

208 545 03 08

210 545 00 08

210 545 01 08

210 545 02 08

210 545 03 08

31.For Nissan NATS 4 and 5

ECU from 2000 to 2002 – NATS 4 and 5 immo

2.2 2.7 diesel 5-socket ECU with 24C04 memory

1.5 gasoline Hitachi MEC with 93C46 and 93C56 memory

1.8 and 2.0 gasoline Hitachi MEC with 93C56 memory

Models: Almera, Almera Tino, Primera, Terrano

32. For Opel immo with HC05

1.2, 1.4 petrol 2-socket (black) ECU with Motorola HC11E20 processor

2.0, 2.2 and 2.5 petrol ECU with 24C02 eeprom memory

33. For Renault with CAN

SIRIUS 32 with CAN

SIRIUS 34 with CAN – NEW !!!

3-socket DELPHI with CAN – 95080 memory

3-socket BOSCH EDC15 with CAN – 5P08C3 memory

EMS 3132 with CAN NEW !!!

EMS 3134 with CAN NEW !!!

Seat occupancy sensor programs

1. For BMW

Europe from 2007 to 2010 year without installed child seat.

Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93

for BMW from 1997 to 2007 without installed child seat

Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

Models from 2003 to 2007: E60, E63, E65, E87, E90

for BMW from 1997 to 2007 with installed child seat

Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

Models from 2003 to 2007: E60, E63, E65, E87, E90

2. For Fiat

for FIAT STILO without installed child seat.

for FIAT STILO with installed child seat.

3.For Mercedes

Without installed child seat:

Models: E-class W211 (2002-2004), S-class W220 (2003-2005), A-class W168, C-class W202, Vito W638, ML, E-class W210, Vito W639, ML W163, A-class W168, S-class W220, C-class W203, CLK W209, Vaneo, E-class W210

With installed child seat: E-class W211 (2002-2004), S-class W220 (2003-2005), A-class W168, C-class, W202, Vito W638, ML, E-class W210, E-class W210, Vito W639, ML W163, A-class W168, S-class W220, C-class W203, CLK W209, Vaneo

for Mercedes from 2004 to 2011 year

Models: E-class W211 2004 do 2007 Temic, SL W230 modele z 2004, SLK W171 2004 do 2011

Mercedes from 2003 to 2010 year

Models: E-class W211 from 2003 to 2007, Bosch contoller, C-class W203 from 2006 to 2007, CLS W219 from 2005 to 2010, CLK W209 from 2006 to 2009, S-class W220 from 2002 to 2005, S-class W221 year 2006 only

4. For Mini Cooper

for Mini Cooper 2002-2005 year without installed child seat.

for Mini Cooper 2002-2005 year with installed child seat.

5. For Mazda

Without installed child seat.:

Models: Premacy, MX-5, 626, 323, 6 With installed child seat:

Models: Premacy, MX-5, 626, 323, 6

For Tacho programs

1.for Audi Q7 and A6

2. for Citroen C4 Picasso

3. for EMF Display

4. for Renault Kangoo 3 Display
