MPPS V21 Chip Tuning

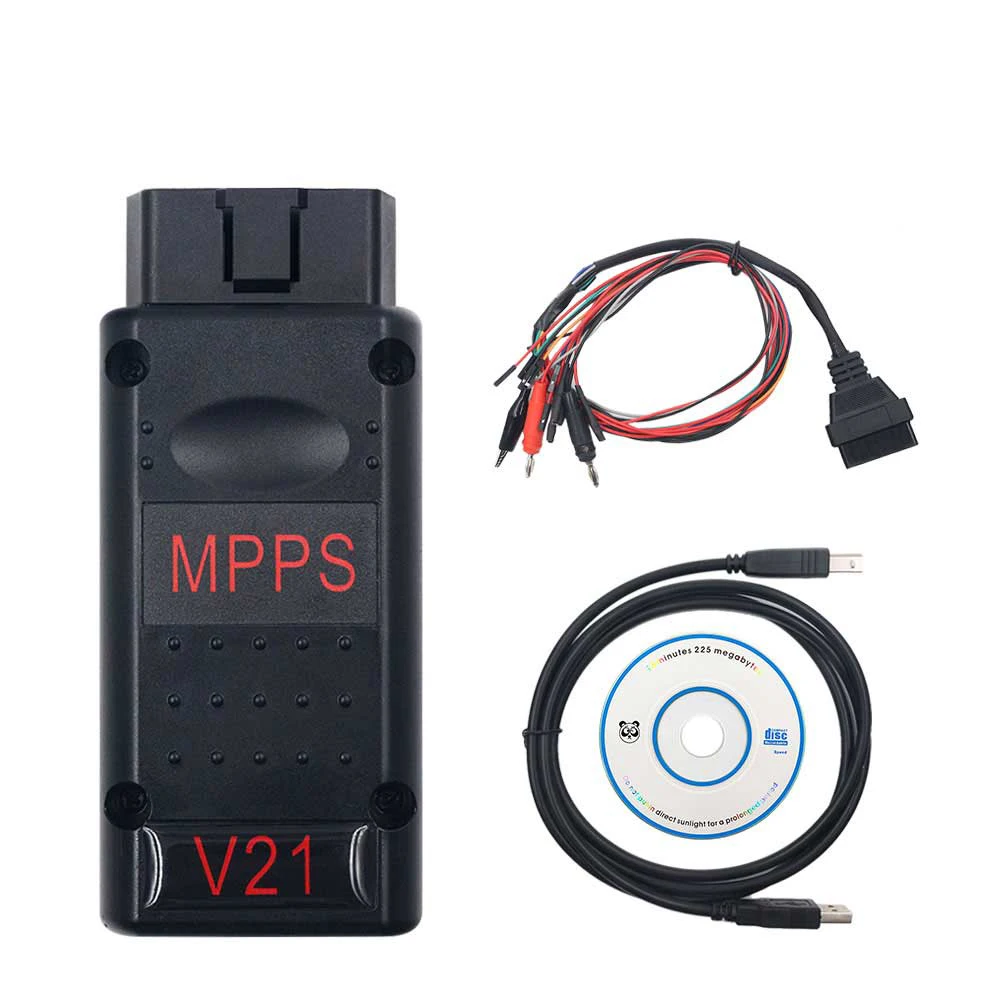

MPPS V21 Chip Tuning Interface

MPPS V16/V18/V21 For EDC15 EDC16 EDC17 CHECKSUM MPPS OBD2 Car Diagnostic Cable Version: MPPS V21

​Support Multi-languages:

Afrikaans, Albanees, Bahasa Melayu, Czech, Cymraeg, Dansk, Deutsch, Esti, English, Espanol, Filipino, Finnish, Francais, Galego, German, Hrvatski, Indonesia, Italiano, Kiswahili, Latviesu, Lietuviskai, Magyar, Malti, Nederlands, Norsk, Polska, Portuguese, Romanian, Slovencina, Slovenski, Srpski, Suomea, Svensk, Turkish

Function:

1. Recalculation of checksum

2. Read / write flash

3. Read and write the Data of Engine ECU

Warming Tips:

MPPS V21 Chip Tuning Features:

1. Read / Write of Micro, Flash and EEprom without using a BDM programmer!

For Fiat 6F3- Full Read / Write Micro, Flash and EEprom over K-line and CAN.

For Fiat 6JF – Full Read / Write Micro and EEprom over K-line.

For Fiat 8DF – Full Read / Write Micro and EEprom over K-line.

For Fiat 8F2 – Full Read / Write Micro and EEprom over K-line and CAN.

For Fiat 8F3 – Full Read / Write Micro and EEprom over K-line and CAN.

For Fiat 8GM – Full Read / Write Micro and EEprom over CAN.

For Fiat 8GS – Full Read / Write Micro and EEprom over CAN.

For Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.

For Fiat 5SF3 – Full Read / Write EEprom over K-Line.

For Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.

For Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.

For Fiat ME7.9.10 – Full Read / Write Micro over CAN.

For Fiat ME7.6.3 – Full Read / Write Micro over CAN.

For Opel 6O2 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.

For Opel 6O3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.

For Opel 6JO – Full Read / Write Micro and EEprom over K-line

2. Supports the latest drivers EDC16, EDC17, MED9.x, For Siemens PPD1 / x, EDC15, ME7.xi much more…

3. This module adds boot mode support for controllers with the tricore processor.

Features:

Auto detects ECU and processor type. No need to select from list, everything is automatic!

Read/Write of all memories Eeprom, Irom, Xrom (where possible)

Patch function for OBD Flashing of TPROT ECU’s (supports only VAG at the moment)

TPROT / DS check feature, for testing if TPROT is active without opening ECU.

Supports For upto TP12

Supports For Siemens (current only for ECU’s without password protection),

Support for unlocking of VAG Simos PCR and For Simos 8.

Checksum Correction supported for MEDC17.

4, The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:
Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).

Selectable full / partial reading and writing when the ECU allows this function.
Selectable reading / writing speed.

Writing “changes only” function for faster programming (when supported by the ECU).
Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.

Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.

Boot mode support for ECU’s with C167 and ST10 processors.

EEprom read/write functions for some ECU’s are included.

For VAG MEDC17 TPROT level checking without opening the ECU MPPS V21 Chip Tuning.

Notice: please choose software V18 only to install, MPPS V21 Chip Tuning software would be blocked the device. If you use V21 software from the other website, please be responsible by yourself.

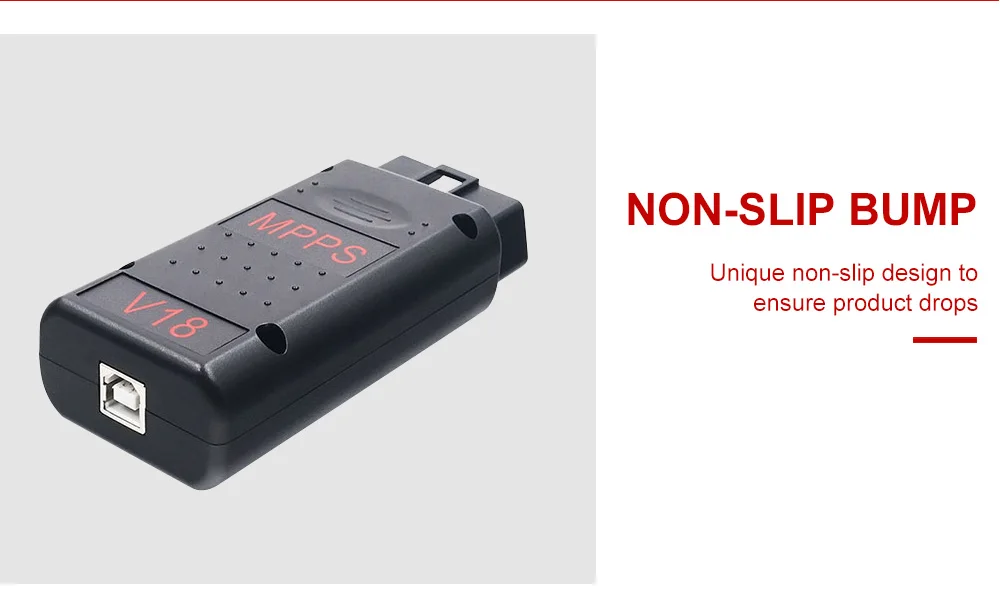

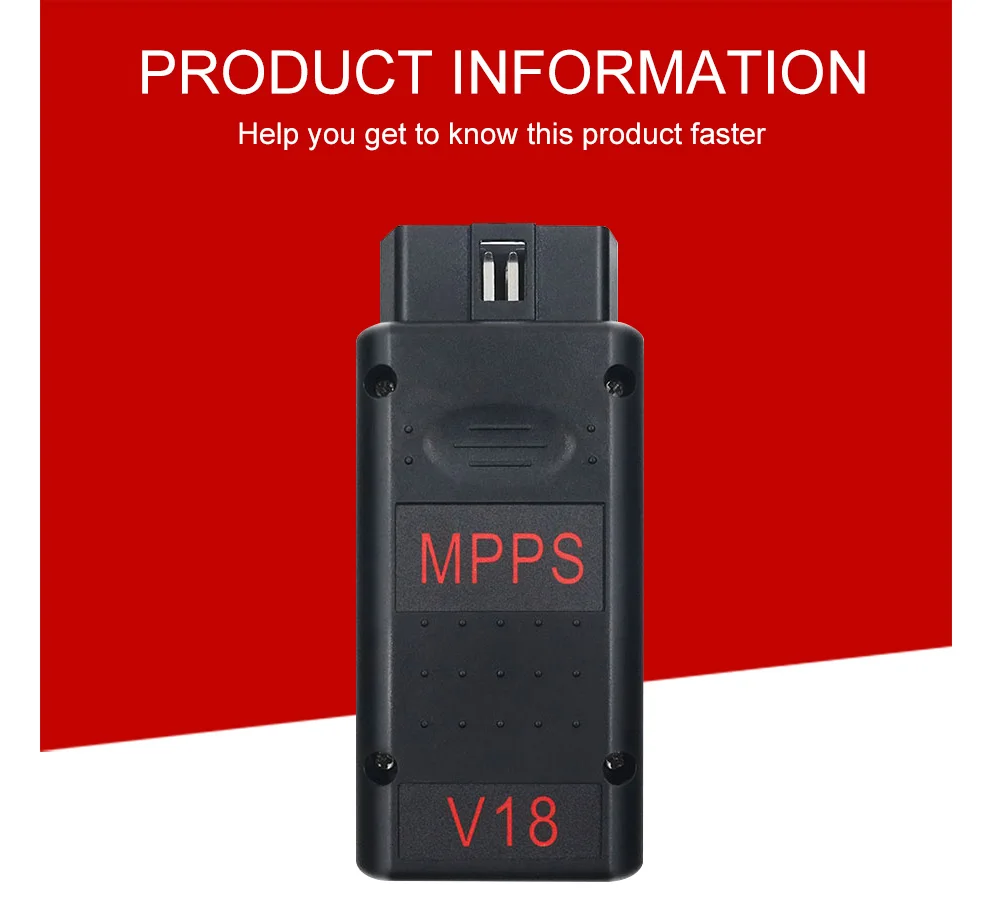

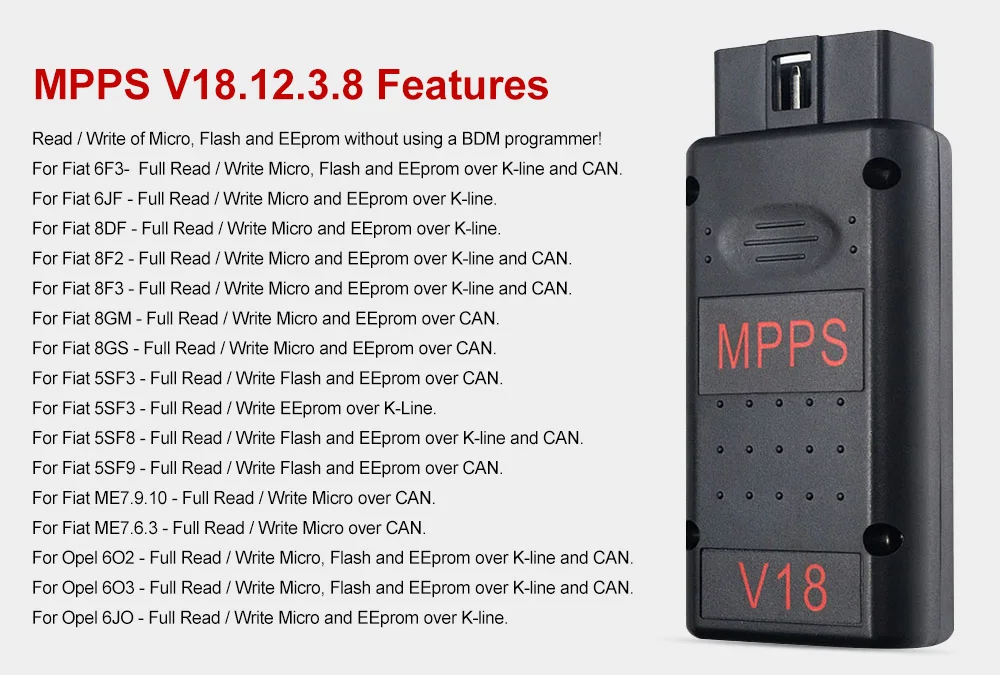

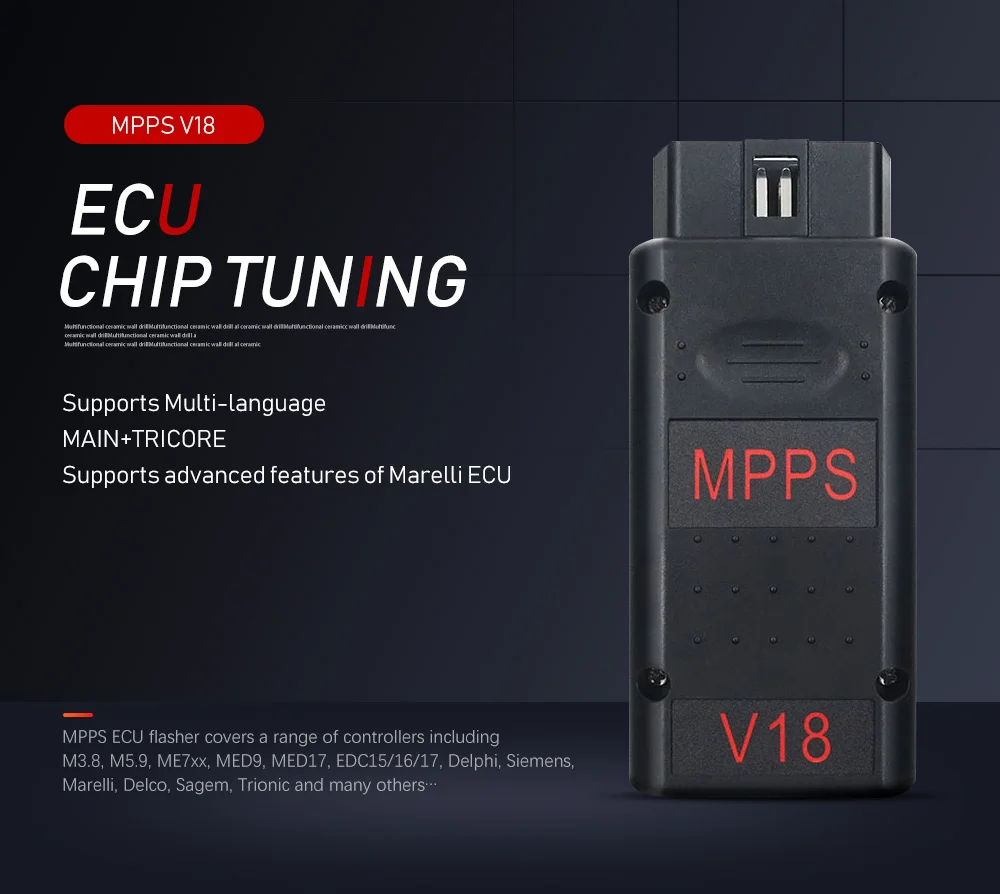

MPPS V18 Features:

Read / Write of Micro, Flash and EEprom without using a BDM programmer!
For Fiat 6F3- Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Fiat 6JF – Full Read / Write Micro and EEprom over K-line.
For Fiat 8DF – Full Read / Write Micro and EEprom over K-line.
For Fiat 8F2 – Full Read / Write Micro and EEprom over K-line and CAN.
For Fiat 8F3 – Full Read / Write Micro and EEprom over K-line and CAN.
For Fiat 8GM – Full Read / Write Micro and EEprom over CAN.
For Fiat 8GS – Full Read / Write Micro and EEprom over CAN.
For Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.
For Fiat 5SF3 – Full Read / Write EEprom over K-Line.
For Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.
For Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.
For Fiat ME7.9.10 – Full Read / Write Micro over CAN.
For Fiat ME7.6.3 – Full Read / Write Micro over CAN.
For Opel 6O2 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Opel 6O3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Opel 6JO – Full Read / Write Micro and EEprom over K-line.

This module adds boot mode support for controllers with the tricore processor. Features:

Auto detects ECU and processor type. No need to select from list, everything is automatic!
Read/Write of all memories Eeprom, Irom, Xrom (where possible)
Patch function for OBD Flashing of TPROT ECU’s (supports only VAG at the moment)
TPROT / DS check feature, for testing if TPROT is active without opening ECU.
Supports For Bosch upto TP12
Supports For Siemens (current only for ECU’s without password protection),
Support for unlocking of VAG Simos PCR and For Simos 8.
Checksum Correction supported for Bosch MEDC17.

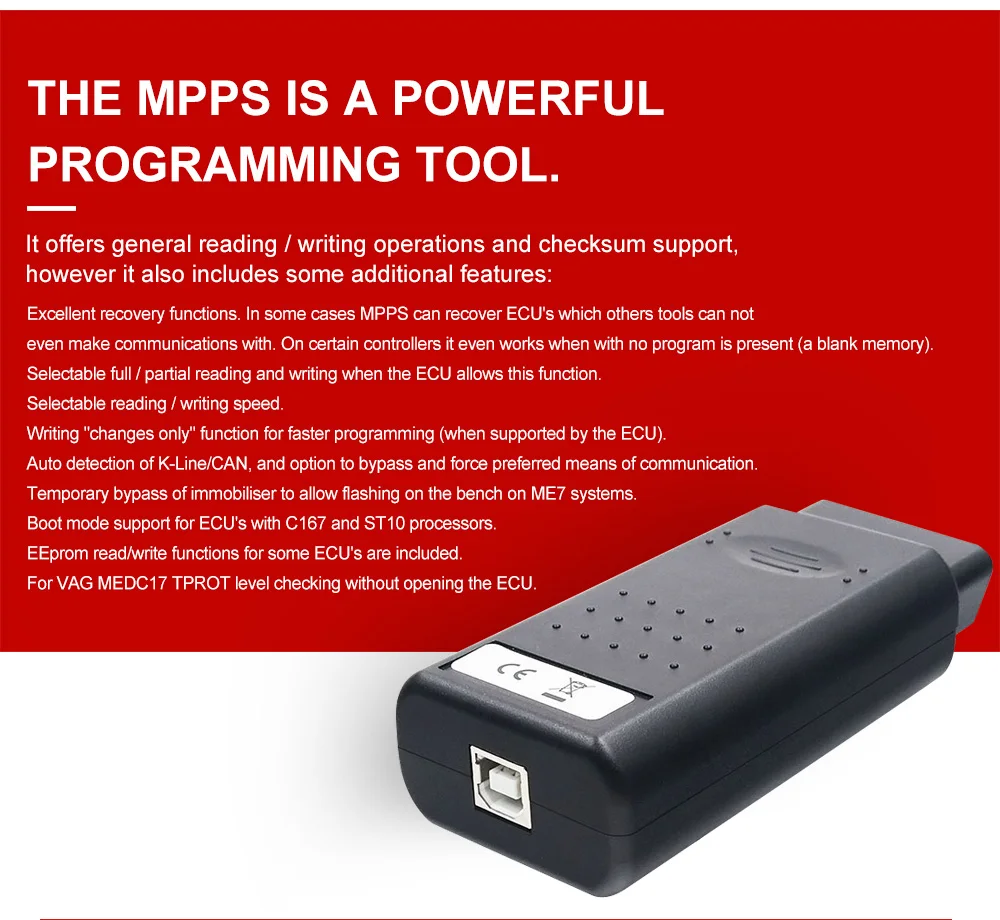

The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:

Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
Selectable full / partial reading and writing when the ECU allows this function.
Selectable reading / writing speed.
Writing “changes only” function for faster programming (when supported by the ECU).
Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
Boot mode support for ECU’s with C167 and ST10 processors.
EEprom read/write functions for some ECU’s are included.
VAG MEDC17 TPROT level checking without opening the ECU.

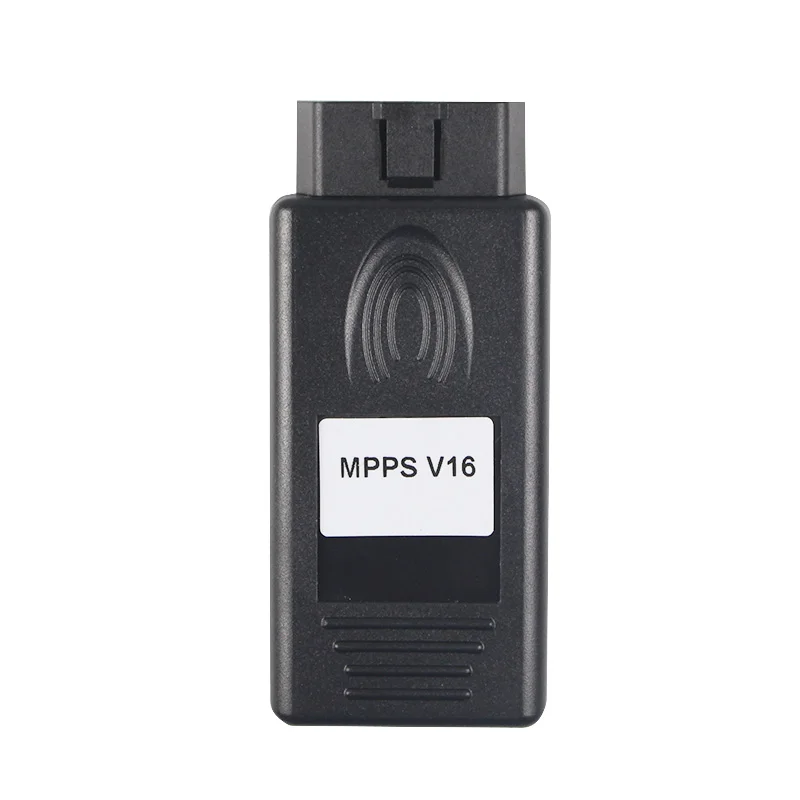

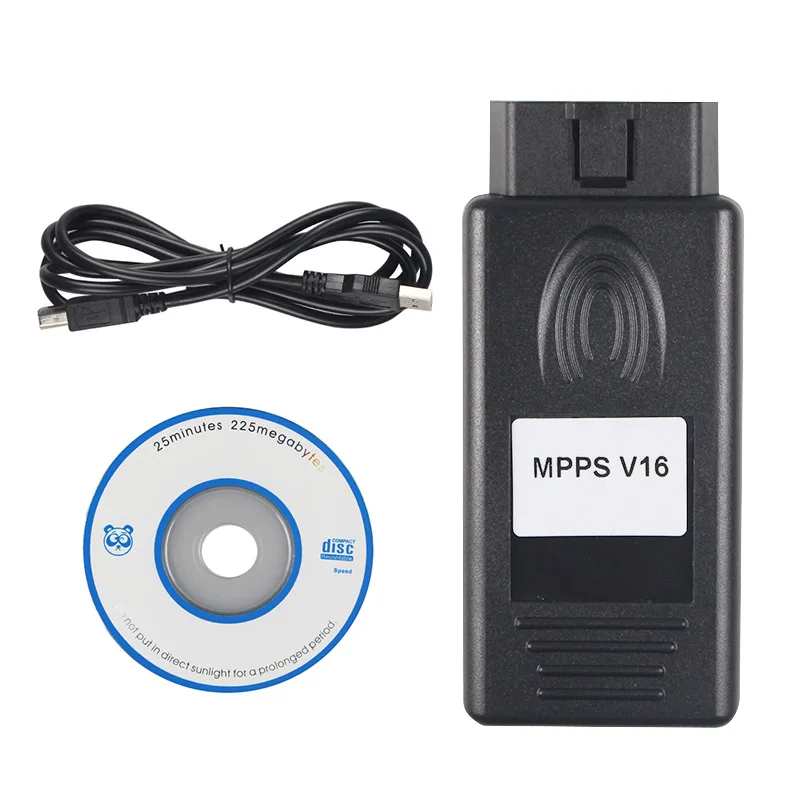

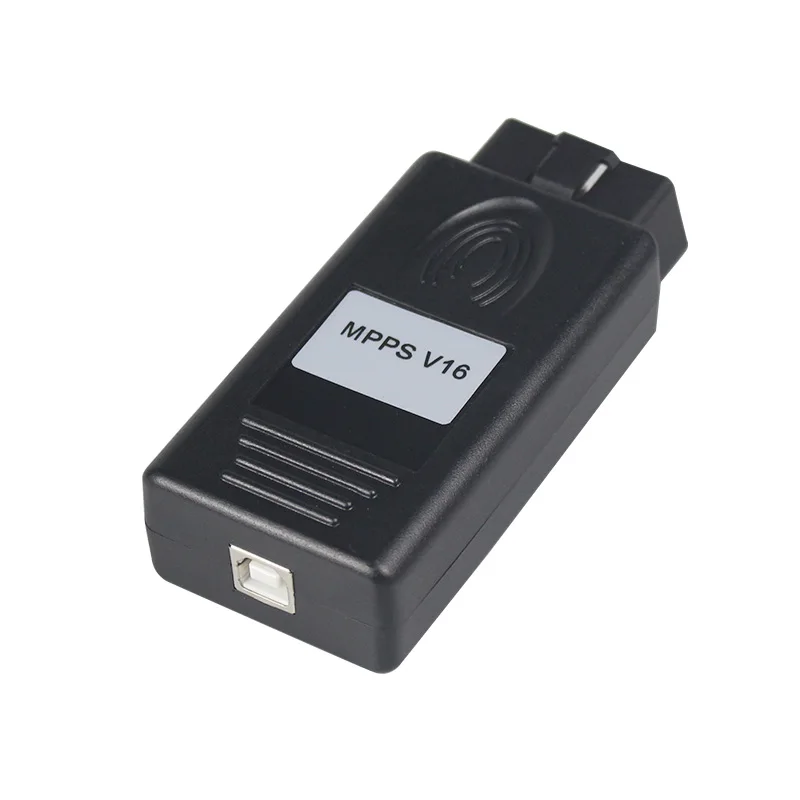

Professional Black MPPS V16 ECU Chip Tuning Interface

Highlights:

Model Name:MPPS V16

Version:V16

Windows System: Windows XP SP2(close anti-virus program)

Support Multi-Language:
English, Afrikaans, Albanees, Bahasa Melayu, Cech, Cymraeg, Deutsch, Esti, Espanol, Filipino, Finnish, Francais, Galego, German, Hrvatski, Indonesia, Italiano, Kiswahili, Latviesu, Lietuviskai, Magyar, Malti, Nederlands, Norsk, Polska, Portuguese, Rmoanian, Slovencina, Slovenski, Srpski, Suomea, Svensk, Turkish.

Please note:

1.Windows System requires Win Xp SP2 to installed. Make sure it is clean SP2.

2.Uninstall older version MPPS software completely on your pc.

3.Disconnect the internet when install software.

4.Do not update it via internet otherwise the tool will be damaged.

Description:

MPPS V16 Ecu Tuning Tool is a very convenient tuning tool which can works through OBD socket. By connecting via OBD port, it can works on Bosche EDC16, EDC17, MED9.x, Siemens PPD1 / x, EDC15, ME7.xi and many more ecus. No need disassemble dashboard, no need sodering.

The MPPS V16 modern interface that allows you to read and write memory from the on-board computer through the diagnostic connector.

Supports the latest drivers EDC16, EDC17, MED9.x, for Sie-mens PPD1 / x, EDC15, ME7.xi much more .

Professional services, without unnecessary boxes and wires.

All the electronics to OBD2 connector.

New cars have been added

Features:

1. Recalculation of checksum

2. Read / write flash

3.Flasher Remap
