Newest PCB Board:

What difference between FGTECH FW 0475 EU Version and FGTECH FW 0386 :

1.FW 0475 EU Version fixed all unstable problem and errors which FW 0386 had. MCU, EEPROM , Relay, Resistance, Led, Solder, Pin, Capacitor these all are corrected

2. FW 0475 EU Version Adds new components, best usb bridge and relays. Work well with OBD / BDM / Boot / Tricore, However FW 0386 is not good at Tricore.

3. FW 0475 EU Version Adds much more and newer vehicles and ECU protocols than FW 0386

4. FW 0475 EU Version Support more OS : Win XP / Win7 32bit and 64bit / Vista,

FW 0386 can only work well with win xp.

5. FW 0475 EU Version is unlocked version ,You can use it online

FW 0378 must disconnect internet when using.

6. Their the main program of pcb is different .

7. FW 0475 version software is more user-friendly.

Features of FG TECH 0475:

1. FG Tech Galletto 4 Master V54 BDM-Tri Core-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum, BDM-TRICORE-OBD.

2. FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone.

Specifictions of FTECH 0475:

1. Version: Firmware 0475, Software V2012.02

2. PC System:windows xp, vista, win7 32bit/64bit

3. Software Language: English, Spanish, French, Italian, German, Czech, Portuguese, Turkish

4. Compatible for cars (12V), trucks (24V), motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum.

5. Unlock version, can use directly, no need to activate.

6. It has Add BDM Function/ Tri-core/OBD K-CAN

7. Original FR232 USB bridge and relays

9. Support Online Operation. (There will be no damage to use it when connecting the internet)

FGTECH 0475 Added New vehicle and ecu type Than 0386 Version:

11/12
OBD driver SSang-yong Del-phy DCM3.7 Read/Write, Checksum

11/12
OBD driver for Fer-rari 458 Italia MED9.6 Ecu Master and ECU Slave Read/Write, Checksum

10/12
OBD driver for Fi-at/Al-fa/Lan-cia Twi-nair/Mult-iair 8GMF and 8GSF Read/Write, Checksum

10/12
OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF8x Read/Write, Checksum

10/12
OBD driver for Ma-zda 5, Ma-zda 6 2.0 Diesel ECU RF7x Read/Write, Checksum

09/12
OBD driver for Sim-os 10.xx VA-G 1.2 TSI Read/Write, Checksum

09/12
OBD driver for CRD 3.xx Merc-edes 2200 CDI Read/Write, Checksum

09/12
Simos PCR2.1 VA-G 1.6 TDI Unlock Boot Tool – Read/Write EEPROM

09/12
OBD driver Sim-os PCR2.1 VA-G 1.6 TDI Read/Write, Checksum

08/12
RSA recognition Peu-geot Bip-per

08/12
RSA recognition Citr-oen Ne-mo

08/12
OBD driver Driver for writing Bo-sch EDC16C34/5 Peu-geot Bip-per Read/Write, Checksum

08/12
OBD drive Driver for writing Bo-sch EDC16C34/5 Citr-oen Ne-mo Read/Write, Checksum

07/12
OBD driver Del-phi DCM3.5 for Ta-ta Sa-fari Read/Write, Checksum

07/12
Checksum recognition for DCM3.7 Ssan-gyong

07/12
Checksum recognition for DCM3.7 Op-el and Sa-ab

07/12
Checksum recognition for DCM3.7 Ki-a and Hyu-ndai

07/12
Boot Visteon ST10F275 RX-TX Mode

07/12
Boot ME7.9.10 ST10F275 RX-TX Mode

06/12
Checksum recognition for Denso Sub-aru Tri-beca

06/12
Boot Mitsu-bishi MH7203 Hyu-ndai

06/12
Checksum recognition for Denso Nis-san L200

06/12
Checksum recognition for Denso Nis-san X-Trail

06/12
OBD driver Op-el Simtec75 CAN Read/Write, Checksum

05/12
OBD driver Pors-che SDI3 CAN Read/Write, Checksum

05/12
Cor-vette Utility CAN for change VIN, Code Align, Erase Errors

05/12
Corette Utility VPN for change VIN, Code Align, Erase Errors

05/12
OBD driver Reault SID305 CAN Read/Write, Checksum

05/12
OBD driver Masrati ME9 CAN Read/Write, Checksum

04/12
Tool Boot Hitaci Phase 3

04/12
Tool Boot Hitaci Phase 2

04/12
OBD driver Fi-at ME17.31 CAN Read/Write, Checksum

04/12
Boot Mits-ubishi for L200 MH8102F

03/12
Boot Mitsu-bishi for Lan-cer EVO MH7202

03/12
Fi-at MJ8DF CAN Serial Injectors

03/12
Fi-at MJ8DF CAN Serial Injectors

02/12
OBD driver Fi-at MJ8DF CAN Read/Write, Checksum

02/12
OBD driver Fi-at MJ8DF K-line Read/Write, Checksum

02/12
OBD driver Merc-edes Del-phi CRD2.xx CAN Read/Write, Checksum

01/12
OBD driver Fo-rd Del-phi DCM3.5 CAN Read/Write, Checksum

01/12
OBD driver PS-A Delp-hi DCM3.5 CAN Read/Write, Checksum

01/12
OBD driver VA-G Sim-os 3xx Boot mode 29F400 C167 Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 9.1 Boot mode 29F400 C167 Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 7.1 Boot mode 29F400 C167 Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 33 K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 32 K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PG K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PE K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PD K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PC K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 3PA K-line serial Read/Write, Checksum

12/11
OBD driver VA-G Sim-os 9.1 K-line Read/Write, Checksum

11/11
JTAG MPC55xx

10/11
New password Triore Tprot V08-10

10/11
OBD driver Ren-ault Val-eo V40, Read/Write, Checksum

10/11
AUD Ren-esas

10/11
Boot Ren-esas

Installation Steps:

FG Tech Galletto 4 Master FGTECH V54 0386 BDM OBD Function

1. Software Version: FG TECH Galletto 4 Master V54

2. Supports Multi-Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish

3. It is a famous chip tuning tool for cars (12V), trucks (24V), motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum.

4. Unlock version, can use directly, no need to activate.

5. It has Add BDM Function/ OBD K-CAN

6. Supported Operating System: Windows XP or Windows 7 32bits.

Tips To Install Fgtech V54 On Win7 32Bit:

1. Set computer date to 01.01.2013

2. Install FGtech Galletto Edited v1.0 NOT opened. Connect Fgtech Tool to computer and choose new driver folder in CFgTechfgtech_new_driver

3. Install Galletto Win7 not opened, install FGtech Galletto Edited v1.0 NOT opened again

4. Give Fgtech tool 12V Voltage or connect to car

5. Open/Start/Click Gallleto Win7 for windows

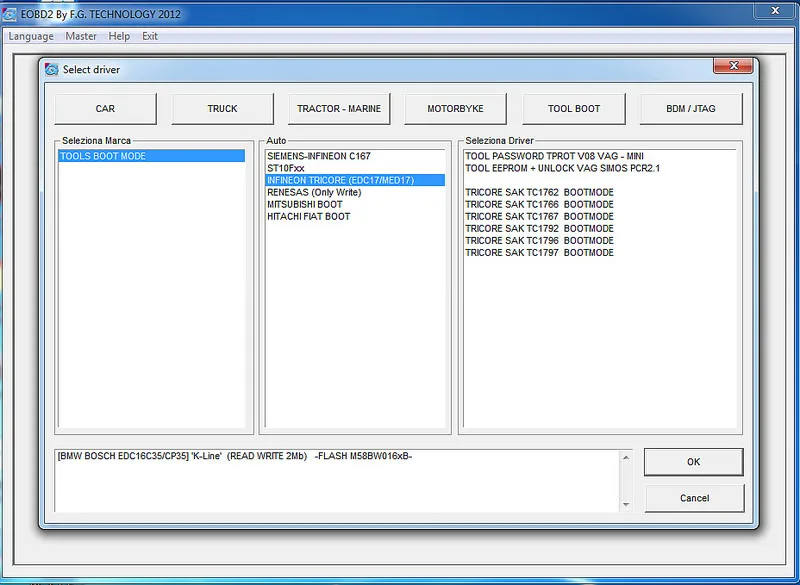

Boot Mode System:

1.TC1766

2.TC1767

3.TC1792

4.TC1796

5. TC1797

NEW JTAG – BDM – MOT – FREESCALE:

1.Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8GMF

2.New Delphy DCM3.5xx DCM3.7xx TRW

3.MOT Free scale MPC 555/556/561/562/563/564/565

4.MOT MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 For GM- For OPEL- For SAAB

5.MOT MC 68376 Campi 01 for Lamborghini – Lotus

6.MOT MC 68336 MEMS D5

7.MOT ZC 439615 – ZC 439507 IAW For FIAT – VAG

8.New Line OBD protocols VPM for GM Hummer-Corvette-Munstang-Blazer-Cadilac

9.New Line OBD protocols Tx-Rx – for Subaru – For Mitsubischi – For Hitachi – For Denso ecu

10.All EDC17 MED17 is good always modify with Boot Mode

Master Version:

1.Recovery Mode Completa

2.Funzione scan tool per eliminare i DTC

3.Function scan tool for erase the DTC

4.Controllo tensione di batteria auto in tempo reale

5.Check tension of battery car in real time

Automatic Checksum:

All old protocols included for Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso

Boot Mode C167x / ST10, Boot Mode With password for Bosch, Siemens

MOT MC68332 – MCYQQCU – MC68377, MC68376, MC68336, ZC439615, ZC439507

MOT Freescale MPC 555/556/561/562/563/564/565

Freescale MPC 5553/5554/5565/5566

BDM.

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

Can Bus V2.0 50Kb > 1000Kb

J1850 VPW PWM for GM For FORD

Rx Tx RS232,

RS 485,

Automatic setup Pull up K-L line 250, 500, 1000 ohm,

Automatic setup termination Can bus 0, 60,120 ohm,

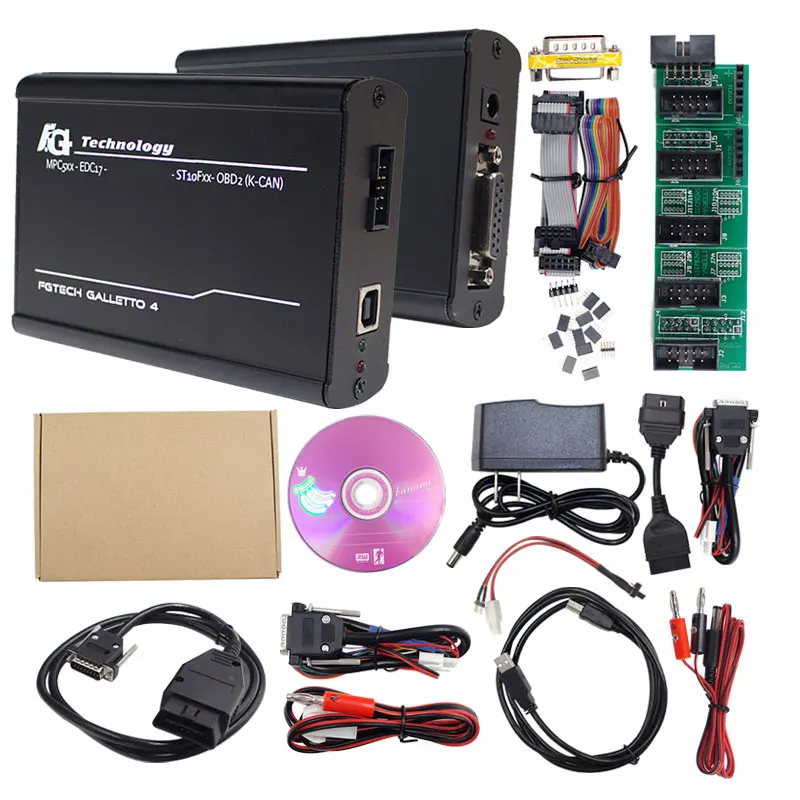

Package List:

1.1pc x FGTECH V54 New version main interface

2.1pc x ECU cable for boot

3.1pc x Adapter for BDM to CMD with bdm cables

4.3pcs x BDM adapters

5.6pcs x BDM connectors

6.2pcs x Power cable

7.1pc x OBD2 cable

8.1pc x USB cable (1.5meter)

9.1pc x CD

Note:

1.This FG TECH V54 is not original.

Please don’t update it on Official Website, Or it will be damaged.

if u want to update ,we will send it to you By Email or CD .

It only supports Windows XP or Windows 7 32bits and must close antivirus program.

Or it will make some problems and can not be used.
