XPROG V6.50 ECU Programmer
For the installation system, please Note:
XPROG 5.55 : Can only support WIN 7 64 BIT computer system
XPROG 6.12/6.26/6.50 : Can only support WIN 7 64BIT computer system
Please NOTE that if the customer’s wrong operation causes the product certificate problem, the warranty will not be valid! ! !

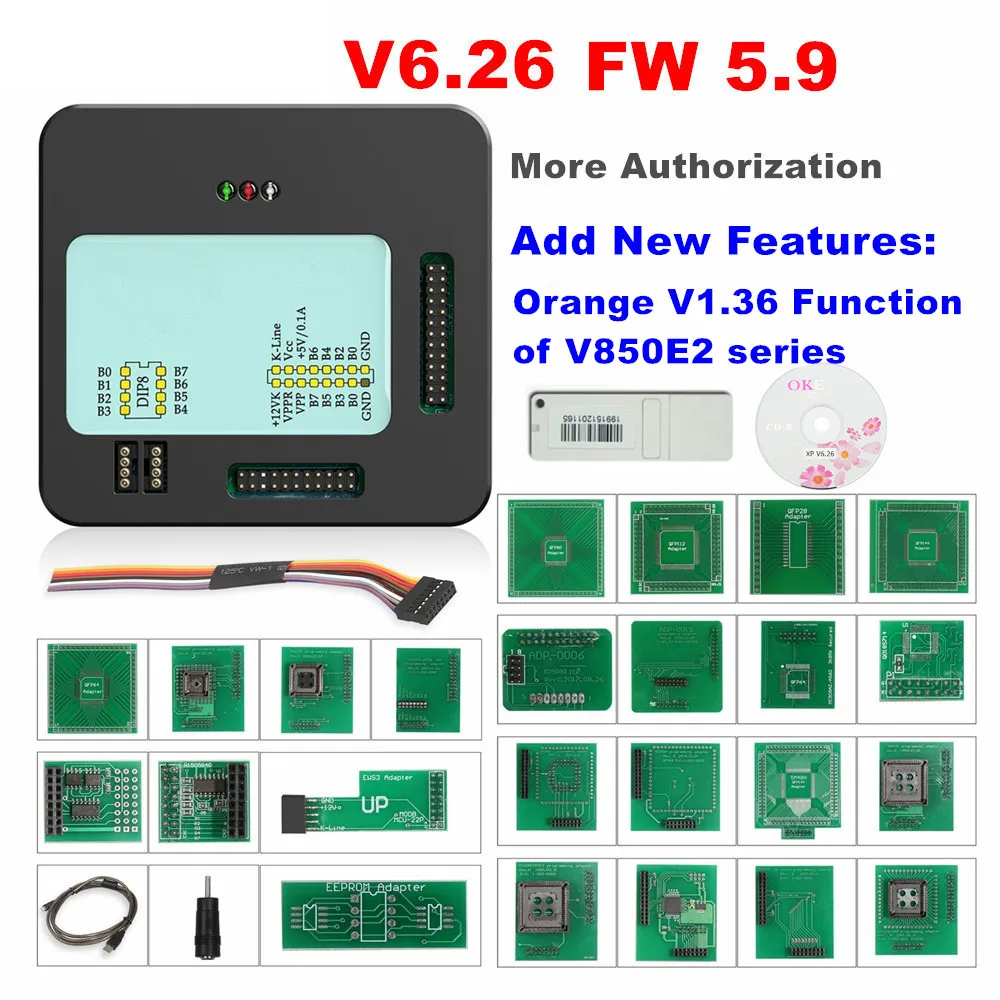

For Xprog V6.26 and V6.50,add New Features of Orange V1.36 V850E2 Series Function
Part of Display:
If buyer interests,please contact us to send you full list display weblink.
PLease Pay Attention for All version Xprog Series:
It CAN NOT update online,when windows message popped up a license entry (error),please MUST click”NO”.
If press “yes”,device will asked to update online,and then the license error window appeared. As it turned out , all licenses will lost. All authorization will lost and device damaged . Buyer need responsible for this .
For XPROG V5.55/V5.86/V6.12 and V6.17,you can buy Atmega64 to try repiar it,but we will not guarnatee it will works 100%. As Different buyer has different skills and problem different .
For XPROG V6.26 Atmega64 + one small chip ,please check below position as reference .if buyer cannot repair ,Need send back to factory repair . buyer need pay all costs for this .
2021 NEW Release XPROG V6.50 ,More Authorization Released
Software V6.50 Firmware V6.8
Attention For Xprog V6.50 Software Installation Tips:
1. MUST Connect Internet,use online(But DO NOT UPDATE)
2. PC Time MUST adjust to Accurate Local Time
3. MUST first install 6.50registry,then run V6.50 Software
4. After used,close the software and unplug the usb dongle from the computer
5. Better to use in English System
6. PDF MUST update to Newest Version from official site
Computer Requirement For V6.50:
1. Reuqire only Win 7 64bits
2. System Space at least have Space C and Sapce D . if only Space C ,software install failed and show error .
3. Close Anti-virus programmer
When require Serial Number of USB Dongle for V6.50,please check below:
Please check below Xprog V6.50 New Added Authorization:
Top 5 Reasons to Get Newest XPROG-M V5.72
1. Latest software version: V5.72
2. This is the only version XPROG-M can decypte new version for BMW CAS4.
3. hard disk and USB Dongle, more convenient and secure.
4. Add new authorization: AUTH-0025 Authorized 11/4/2014
5. High quality with one year warranty.
6. No operation system limitation, software can be installed on Windows XP, 7
Tips for using XPROG-M V5.72
1. If your X-Prog is older version,cannot use this newest dongle to update to V5.72
2. Close all of the computer anti-virus software. If not, X-prog software may be killed.
3. Disconnect the internet. If not, the internet may damage the hardware.
4. Uninstall all the old version xprog-m, or xprog box software, make sure that your PC only install V5.60 software we provide
our xprog-box hardware cannot work with other lower or higher version software. If not, the hardware will be damaged, and will lose its warranty…
5. Never try to UPDATE, the hardware will be damaged if you want to try to upgrade it online, without any warranty.
Xprog 5.72 have additional function as follow photos shows:
Latest Released Xprog V6.12 ELDB Add more function XPROG-M ECU Programmer
Software V6.12 Firmware V5.4
Error About Certifate Expired:
When buyer meet this problem ,it means your computer install other older version and didn’t uninstall yet.and computer has old xprog software registry.red and didn’t uninstall ,so it wil cause this problem .
Now you need buy ATMEGA 64 chip to reflash programmer and then next time must click 6.12registry and then run 6.12 software.
So No matter which version you use,before open software MUST click the right version registry .Otherwise it will runs old version registry and then confilt with new hardware and show this update error.
It improve the PCB performance.
If buyer want to know if your chip is supported XPROG V6.12,please contact with us ,we will send you chip list file .
How to connect XPROG V6.12?
About Wire Digram,software has included it ,please check it
XPROG V6.12 using tips:
1.XPROG V6.12 dongle isn’t compatible with older version Xprog. You are not allowed to update from the older version Xprog V5.55 V5.60 V5.70 V5.84 to this newest V6.12 XPROG-M
2. Please Close all anti-virus software in your computer, becaUse the anti-virus software will kill Xprog V6.12 driver and software.
3. Disconnect internet. Or V6.12 XPROG-M hardware may be damaged .
4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG V6.12 hardware is not compatible with other version XPROG software. Otherwise the hardware will be damaged and its warranty will be invalid.
5. Never try to UPDATE it, the hardware will be damaged if you try to update it online. Warranty will be invalid
2. Please Close all anti-virus software in your computer, becaUse the anti-virus software will kill Xprog V6.12 driver and software.
3. Disconnect internet. Or V6.12 XPROG-M hardware may be damaged .
4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG V6.12 hardware is not compatible with other version XPROG software. Otherwise the hardware will be damaged and its warranty will be invalid.
5. Never try to UPDATE it, the hardware will be damaged if you try to update it online. Warranty will be invalid
Install Notice:
Please windows system required as below:
Please windows system required as below:
1.Windows system should be windows XP 32bit OR windows 7 64 bit, all the patchsoftware for the windows system should be installed already and the windowsproperly works well…
2.The windows system should be with at lest 2 partitions (except the CD ROM.)
3.Can not be working with virtual harddisk.
Install Steps Manual:
1.Click the file “installation.reg”, get the file information to theregedit.
2.Install the file “AdbeRdr11000_zh_CN.exe”, it is a must, otherwisethe Xprog software will not start.
3.Plug the Xprog main interface to the computer, install the USB driver.
4.Copy the folder “XPROG-BOX6.12” to the desktop, and open it, and runthe “xprogdesktop.exe”, then software open.
XPROG V6.12 Authorizations:
AUTH-0001Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROMand flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows toread/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization(allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flashmemory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypasssecurity bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automaticallydetects MPC5xx, M95xxx device type, flash, external flash and configurationmemory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization(allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/writeinternal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows toread/write secured and non-secured internal flash and external serial EEPROM,view /change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROMand flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows toread/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization(allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flashmemory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypasssecurity bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automaticallydetects MPC5xx, M95xxx device type, flash, external flash and configurationmemory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization(allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/writeinternal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows toread/write secured and non-secured internal flash and external serial EEPROM,view /change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1HC(S)908 update Authorized 2016/3/13
AUTH-0027-2HC(S)908 sercurity Authorized 2016/3/13
AUTH-0028-1Renesas V850 Authorized 2017/10/9
AUTH-0028-2Renesas SuperH Authorized 2017/10/9
AUTH-0028-3Renesas RL78 Authorized —New!
AUTH-0028-4Renesas M32C Authorized —New!
XPROG-M V6.12 Adapters Newly Added:
ADP-0019 Rev.B —-New!
ADP-0006 M35080 ICP adapter —New!
QFP64 MC908AZ/AS60 3K85K adapter —New!
QO18S714 —New!
ADP-0019 Rev.B —-New!
ADP-0006 M35080 ICP adapter —New!
QFP64 MC908AZ/AS60 3K85K adapter —New!
QO18S714 —New!
XPROG-M V6.12 Adapters included:
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass securityadapter
Additional adaptor for 5M48H P-FlashADP-0019Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass securityadapter
Additional adaptor for 5M48H P-FlashADP-0019Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

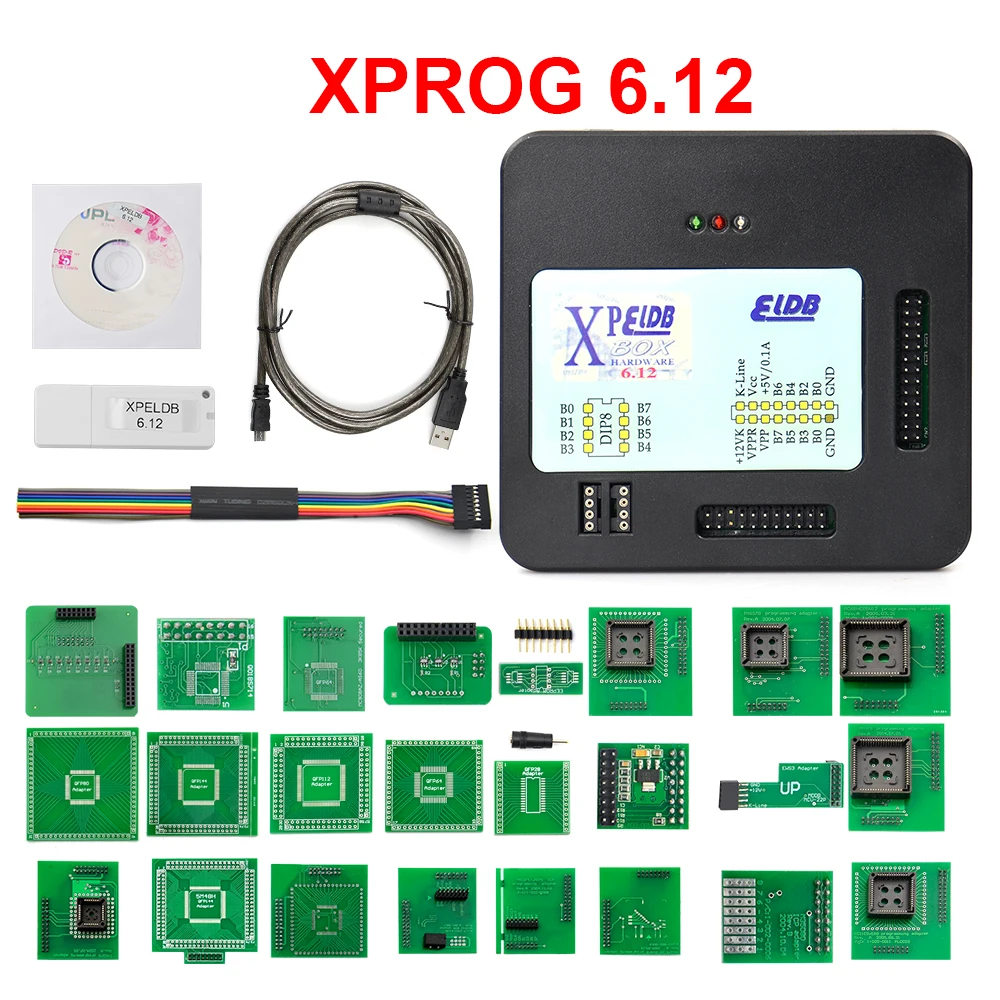

1pc x XPROG-Box Hardware (Aluminum Enclosure)
19pc x Adapters Set

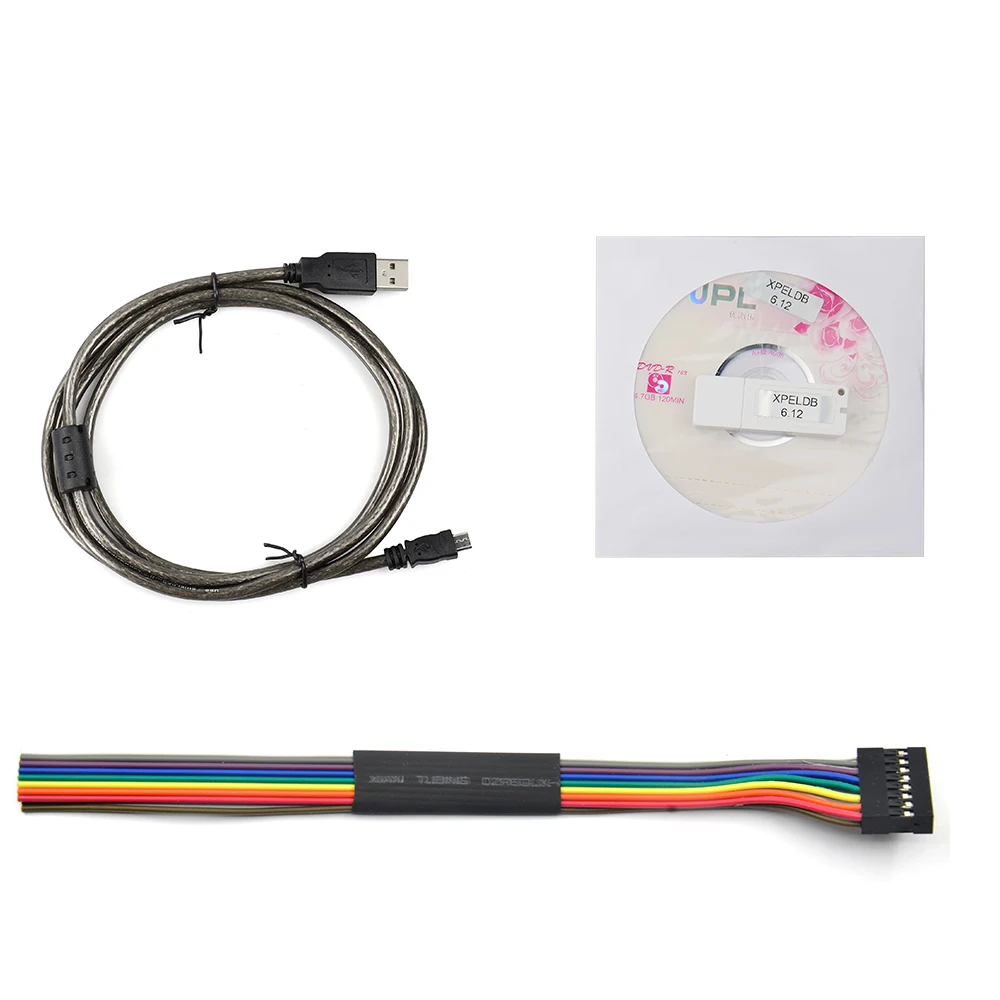

1pc x USB Cable
1pc x 16Pin cable

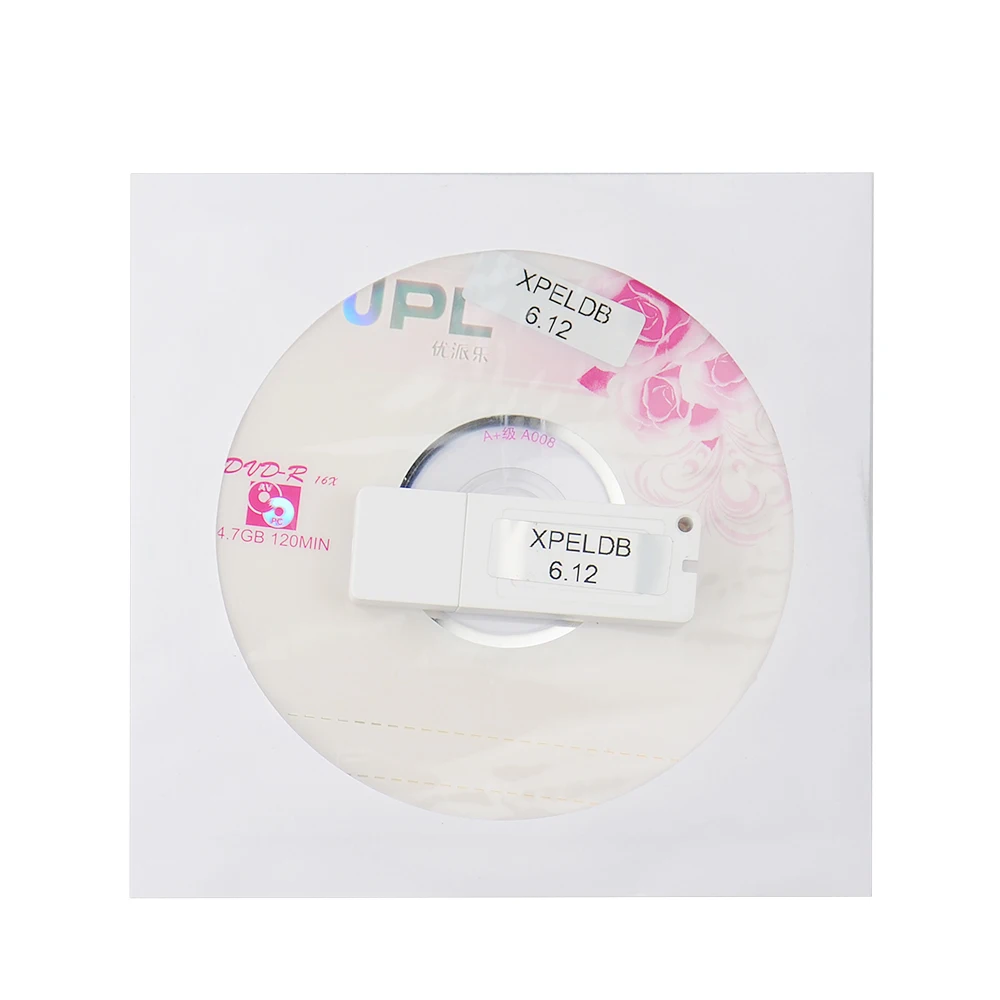

1pc x CD with XPROG-Box Software (V6.12)
19pc x Adapters Set
1pc x USB Cable
1pc x 16Pin cable
1pc x CD with XPROG-Box Software (V6.12)
| Electronic | No |
|---|---|
| Item Weight | 0.7kg |
| External Testing Certification | ce |
