Original Launch X431 V + 10 inch Tablet Professional Car Diagnostic Tool Auto Scan Pad Automotive Scanner Universal ECU Coding

Buy 2 Pieces, Get Free Gift!

For European warehouse, you will get a LAUNCH CR6001.
For Non-European warehouse, you will get a LAUNCH CR6011.

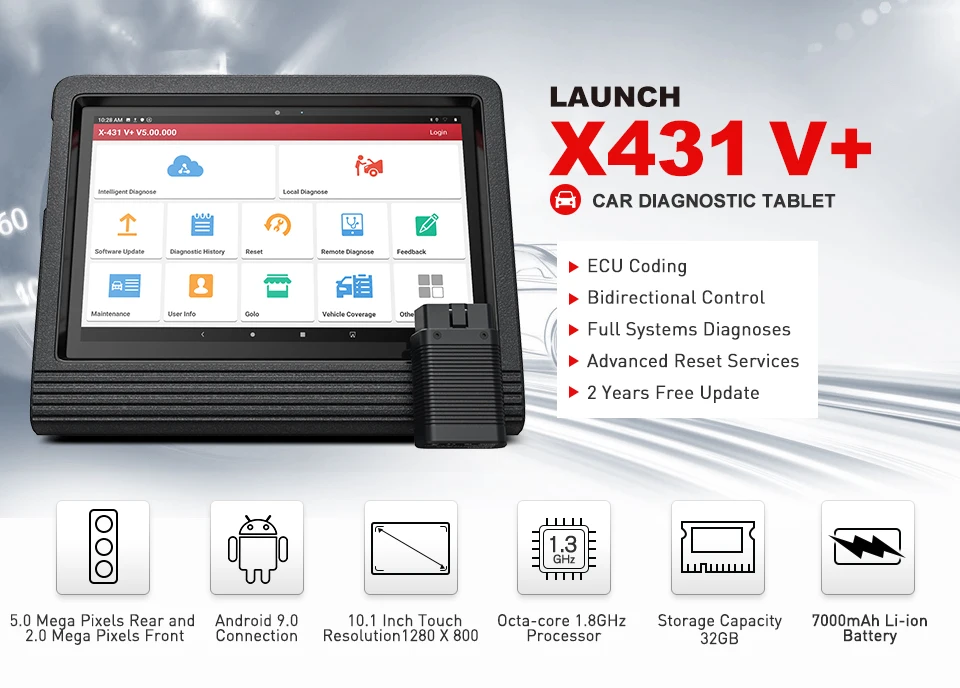

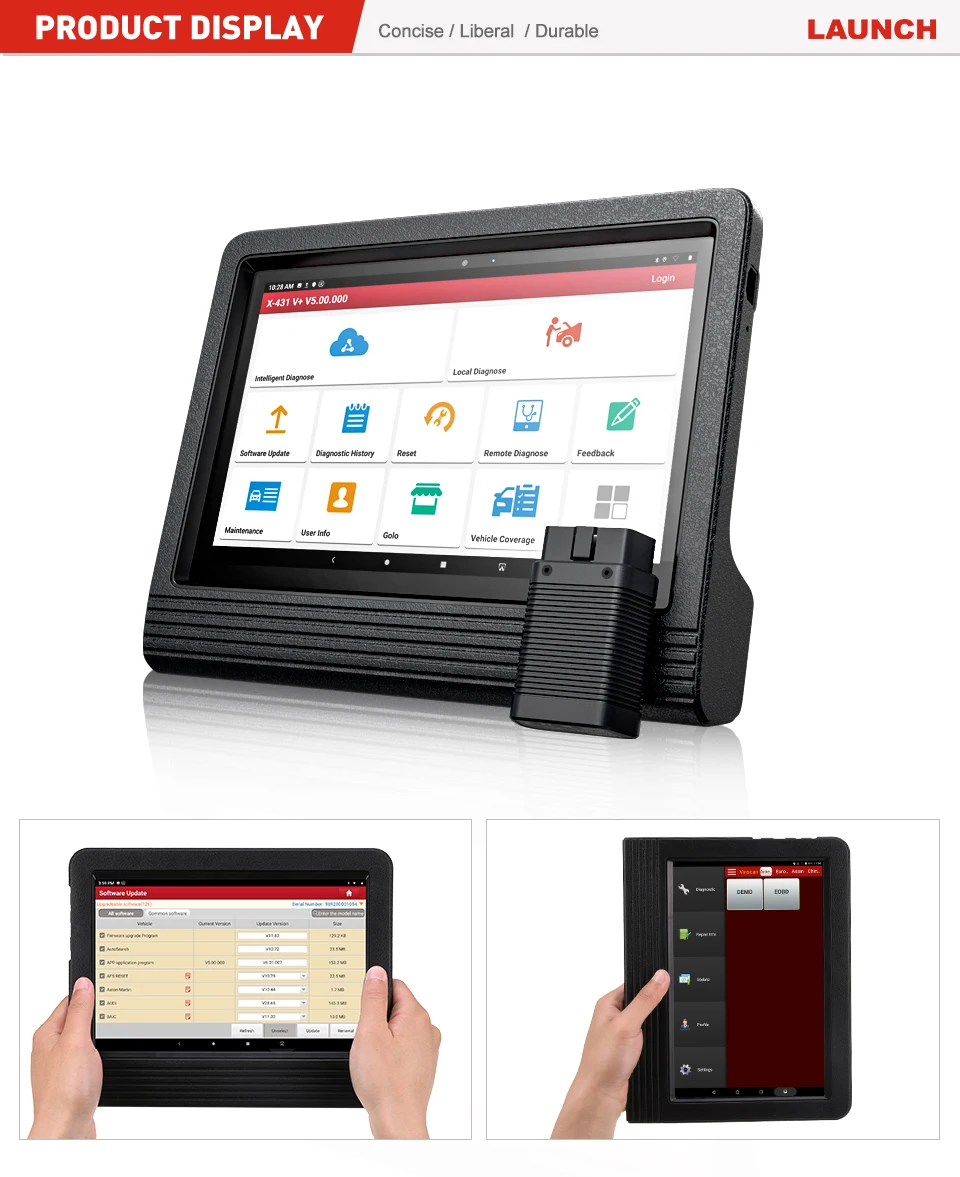

Launch X431 V+ V4.0 – Top Level Diagnostic Tool in LAUNCH.

Launch X431 V+ is a 10 inch tablet with the Powerful diagnostic softwares, the update version of X431 V.

It can also be used with Launch HD module to test Heavy Trucks. If you want to test truck, please check the link below.

//www.aliexpress.com/item/32668926395.html

Global Version, No IP limited.

It is global version, no IP limited. You can use it everywhere in the world.

Two Years Free Update.
Five Years Warranty.

Supported Languages:

English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkey, Dutch, Greek,Hungarian, Arabic, Denish, Korean, Farsi, Romanian, Serbian, Finish, Swedish, Czech.

ECU Coding

LAUNCH V+ 4.0 offers the ECU Coding feature, which is not available in conventional code readers, to allow you:

– To perform the customer individual customization of the car such as setting alarms, doors locking, and outdoor lighting, etc., to improve vehicle performance, or stimulate high-end car functions.

– To alter the configuration when a component is replaced, so the new actuators can be recognized by related vehicle systems.

– To enable multiple car systems to recognize each other, and so the actuators can start to work.

Active Test

With this diagnostic tool’s Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control:

All System Diagnosis

This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
-Read & erase DTCs to locate problem areas and clear the codes.
-View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:

-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics … and more.

This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

Full 26+ Special Functions

1. Oil Reset Service

This function can be performed in the following cases:
i. If the service lamp is on, you must provide service for the car. After service,you need to
reset the driving mileage or driving time so that the service lamp turns off and the system
enables the new service cycle.
ii. After changing engine oil or electric appliances that monitor oil life, you need to reset the
service lamp

2. Steering Angle Calibration

This function can be performed in the following cases:
i. To reset the steering angle, first find the relative zero point position for the car to drive in
straight line. Taking this position as reference, the ECU can calculate the accurate angle for
left and right steering.
ii. After replacing the steering angle position sensor, replacing steering mechanical parts (such
as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel
alignment, or recovering car body, you must reset the steering angle.

3. Electronic Parking Brake Reset

i. If the brake pad wears the brake pad sense line, the brake pad sense linesends a signal sense
line to the on-board computer to replace the brake pad.After replacing the brake pad, you
must reset the brake pad. Otherwise, the car alarms.
ii. Reset must be performed in the following cases:
1) The brake pad and brake pad wear sensor are replaced.
2) The brake pad indicator lamp is on.
3) The brake pad sensor circuit is short, which is recovered. The servo motor is replaced.

4. Battery Register & Battery Maintenance

This function enables you to perform a resetting operation on the monitoring unit of vehicle
battery, in which the original low battery fault information will be cleared and battery matching
will be done.
Battery matching must be performed in the following cases:
i. Main battery is replaced. Battery matching must be performed to clear original low battery
information and prevent the related control module from detecting false information. If the
related control module detects false information, it will invalidate some electric auxiliary
functions, such as automatic start & stop function, sunroof without one-key trigger
function,power window without automatic function.
ii. Battery monitoring sensor. Battery matching is performed to re-match the control module
and motoring sensor to detect battery power usage more accurately, which can avoid an
error message displaying on the instrument panel.

5. ABS Bleeding

This function allows you to perform various bi-directional tests to check the operating conditions
of Anti- lock Braking System (ABS).
i. When the ABS contains air, the ABS bleeding function must be performed to bleed the
brake system to restore ABS brake sensitivity.
ii. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or
brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS

6. Electronic Throttle Position Reset & Learn

This function enables you to initialize the throttle actuators so that the “learned” values stored on
ECU are returned to the default state. Doing so can accurately regulate throttle (or idle engine)
operations to control the amount of air intake. Throttle matching must be performed in the
following cases:
i. The ECU is replaced and the ECU does not yet store throttle working features.
ii. The ECU is disconnected from power and the ECU memory is lost.

iii. The throttle assembly is replaced.
iv. The intake pipe is replaced or removed, which affects idle speed control by ECU and
throttle body.
v. The throttle is cleaned. Although the idle throttle potentiometer features remain unchanged,
with the same throttle opening, the air inflow has changed and idle speed control features
have changed.

7. Diesel Particulate Filter (DPF) Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through
continuous combustion oxidation mode (such as high temperature heating combustion, fuel
additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
DPF regeneration may be performed in the following cases:
i. The exhaust back pressure sensor is replaced.
ii. The PM trap is removed or replaced.
iii. The fuel additive nozzle is removed or replaced.
iv. The catalytic oxidizer is removed or replaced.
v. The DPF regeneration MIL is on and maintenance is performed.
vi. The DPF regeneration control module is replaced.

8. Tire Pressure Monitor System Reset

makes tpms senser in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor
replacement IDs and activate tpms sensors.

9. Electronic Throttle Position Reset & Learn

This function enables you to initialize the throttle actuators so that the “learned” values stored on
ECU are returned to the default state. Doing so can accurately regulate throttle (or idle engine)
operations to control the amount of air intake. Throttle matching must be performed in the
following cases:
i. The ECU is replaced and the ECU does not yet store throttle working features.
ii. The ECU is disconnected from power and the ECU memory is lost.

iii. The throttle assembly is replaced.
iv. The intake pipe is replaced or removed, which affects idle speed control by ECU and
throttle body.
v. The throttle is cleaned. Although the idle throttle potentiometer features remain unchanged,
with the same throttle opening, the air inflow has changed and idle speed control features
have changed.

10. Anti-Theft Matching (IMMOBILIZER)

This function can protect your car from being stolen by clearing the lost car key information and
programming new key into the ECU database. Also known as keys programming.

11. Injector Coding

i. Diesel injector code need programming ID and parameters to the ECU for accurate
communication and Injection control system.
ii. Program in the new fuel injector numbers after replacement to replace the ones previously
programmed into the ECU.

12. AFS Reset:

It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.

13. EGR Adaption

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

14. Gearbox Matching

Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.

15. Sunroof Service:

Set the sunroof lock switch to be on / off according to weather, temperature, and memory.

16. SUS Reset

When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.

-And Windows Calibration, Seats Calibration, Tire Reset, Language Change, A/F Reset, Coolant Bleed, Transport Mode, NOx Sensor Reset, Dblue Reset, Stop/Start Reset.

You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu.

Car List for Full System Diagnoses

-American Cars
Buick; Cadillac; Chevrolet; Chrysler; Dodge; Ford; GM; Hummer; Jeep; Lincoln; (BRAZIL) BX-Fiat; BX-GM

-European Cars:
Abarth; Alfa Romeo; Audi; Bentley; Benz; BMW; Bugatti; Citroen; Dacia; EU-Ford; Ferrari; Fiat; Jaguar; Lamborghini; Lancia; LandRover; Maserati; Maybach; Mini; Opel; Peugeot; Porsche; Renault; Rolls-Royce; Rover; Saab; Seat; Skoda; Smart; Sprinter; Vauxhall; Volvo; VW; (UKRAINE) ZAZ; (RUSSIA) GAZ; IZH; PAZ; SEAZ; UAZ; VAZ

-Asian Cars
(JAPAN) Acura; Daihatsu; Honda; Infiniti; Isuzu; Jpisuzu; Lexus; Mazda; Mitsubishi; Nissan; Nissan GTR; Scion; Subaru; Subaru; Suzuki; Tlisuzu; Toyota; (KOREA) Daewoo; Hyundai; KIA; Samsung; Ssangyong; (CHINA) Baic; Beijing; Changan; Changan-Ford; Changcheng; Changhe; Chsuzuki; DF Peugeot; DF Honda; DF Nissan; DF XK; Flyer,BYD; Fukang; Futian,Foton; Geely; Gonow; GZ Honda; Hafei; Haoqing; HC BMW; Hmada; Huachen; Isuzu,JMC; Jacty; Jianghuai; Jiao; Jinlong; Joylong; Lifan; Liuwel-TY; Luxgen; NJ Fiat; Qirul-TY,chery; Qoros; Saicmg; Spark-TY; TJ Toyota; Trumpchi GAC; Weili; Xiaokang Dongfeng; Xili,Faw Tianjin; Xinkai; YQ Mazda; Zhongshun; Zhongtai,Zotye; Zhongxing; (INDIA) Mahindra; Maruti; Tata; (MALAYSIA) Perodua; Proton; (IRAN) MVM

-Australian Cars
Au-Ford; Holden

Discover More User-Friendly Features

-Remote Diagnosis:

Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.

-Record & Playback:

Another great feature about this automotive diagnostic scanner is that, it would allow you to view the Live Data Stream, and to record the data in Waveform. This would save you the hassle of reading through and digesting all the information which is being presented to you. You can even playback these data, for better analysis and rectification as well as the future use.

-Share Report via Wi-Fi:

Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi. They would take a look at the full, clear and accurate diagnostic report, and then understand about what would need to be done. No more Googling unreliable fixes that would waste your energy.

-Online Repair Resources:

Over 1600 vehicle models’ service & repair information, handbook, repair case and operation skills are included.

-Health Report Generate and Share:

With LAUNCH X431 V+, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

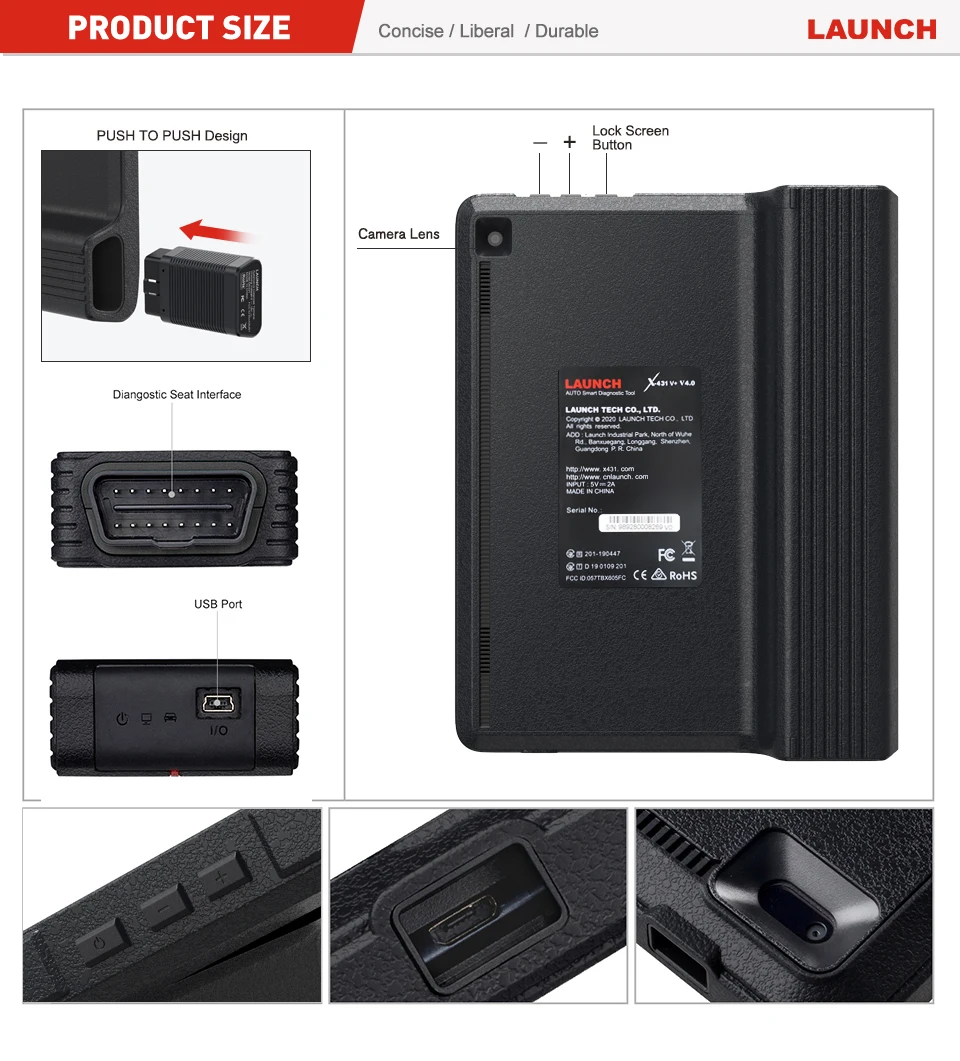

Specification:

Operating System: Android 9.0
CPU: Qualcomm Snapdragon 450, 8-core 1.8GHz
Battery: 7000mAh rechargeable polymer lithium battery
Memory: 3GB
Storage Capacity:32G (can be expanded to 128GB)
LCD: 10.1 inch
LCD Resolution: 1920*1200 IPS
Touch Screen: Capacitive Touch Screen
Cameras: 5.0 mega pixels front and 8.0 mega pixels rear.
Wi-Fi: 802.11a/b/g/n/ac (2.4GHz / 5GHz)
Bluetooth: Supported
Working Temperature: 0 ~ ℃ 45℃
Storage Temperature: -20 ~ ℃ 70℃

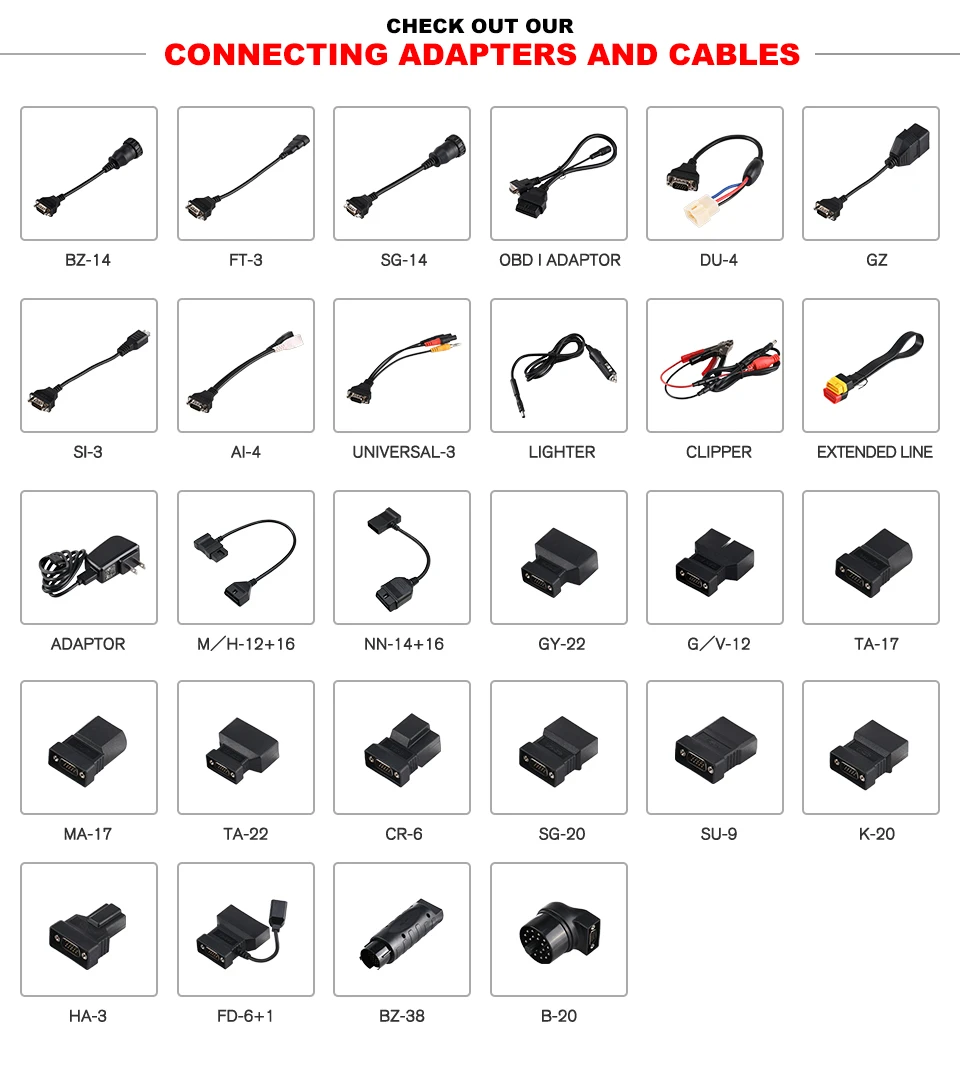

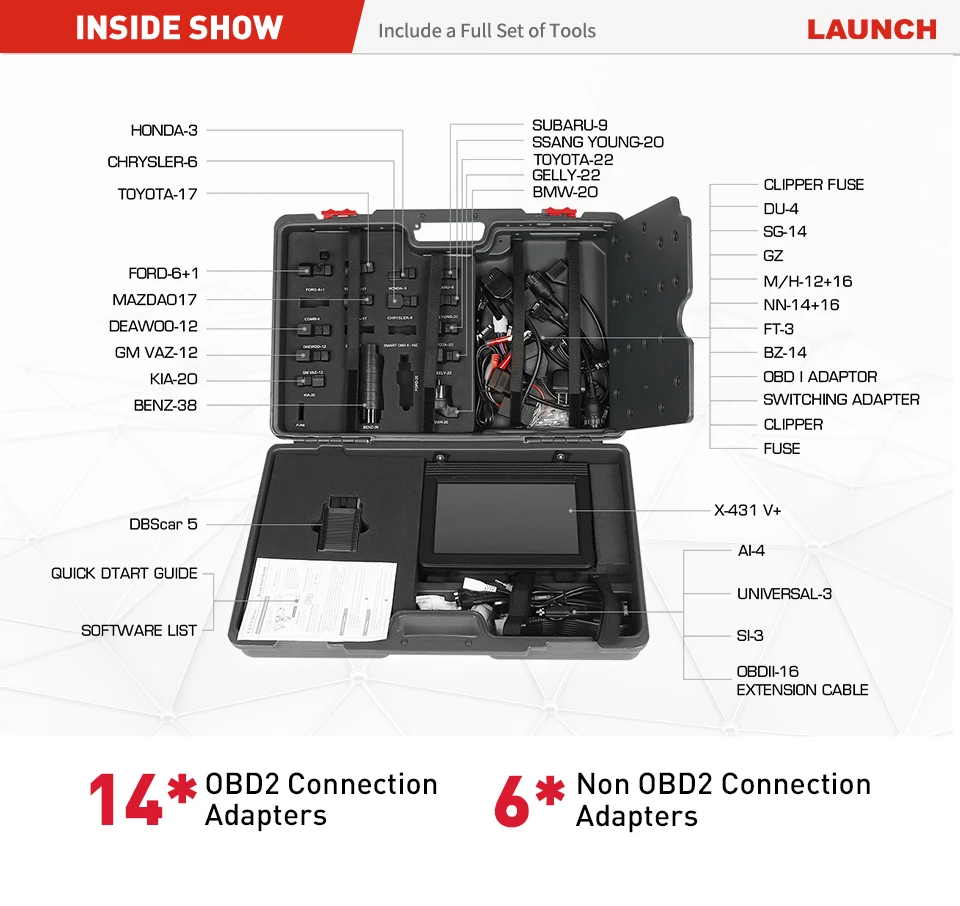

X431 V+ Package List

1*Storage Case
1*LAUNCH X431 V+ 4.0
1*DBScarII Bluetooth OBD2 Connector
1*AUDI-4 Adapter
1*BENZ-14 Adapter
1*BENZ-38 Adapter
1*BMW-20 Adapter
1*CHRYSLER-6 Adapter
1*DAEWOO-12 Adapter
1*DAIHATSU-4 Adapter
1*FIAT-3 Adapter
1*FORD-6+1 Adapter
1*GAZ Adapter
1*GEELY-22 Adapter
1*HONDA-3 Adapter
1*KIA-20 Adapter
1*MAZDA-17 Adapter
1*MITSUBISHI/HYUNDAI-12+16 Adapter
1*NISSAN-14+16 Adapter
1*SSANGYONG-14 Adapter
1*SSANGYONG-20 Adapter
1*SUBARU-9 Adapter
1*SUZUKI-3 Adapter
1*TOYOTA-17 Adapter
1*TOYOTA-22 Adapter
1*UNIVERSAL-3 Adapter
1*OBD 1 Adapter BOX
1*AIT I OBD16 Extension Cable.
1*X-431 PRO5 USB A to Micro cable, RoHS
1*Cigarette Lighter Line (English, without LAUNCH Logo), RoHS
1*Power Cable with Double Clamp (English, without LAUNCH Logo), RoHS
1*Quick Start (English), RoHS
1*Manual (English), RoHS
1*Password Envelope
1*Power Adapter 5V, 2A (US Standard), TB-X605FC, LX, RoHS
1*Power Adapter 5V, 2A (EU Standard), TB-X605FC, LX, RoHS
4*Fuse 5*20 mm
2*Fuse 6*30 mm

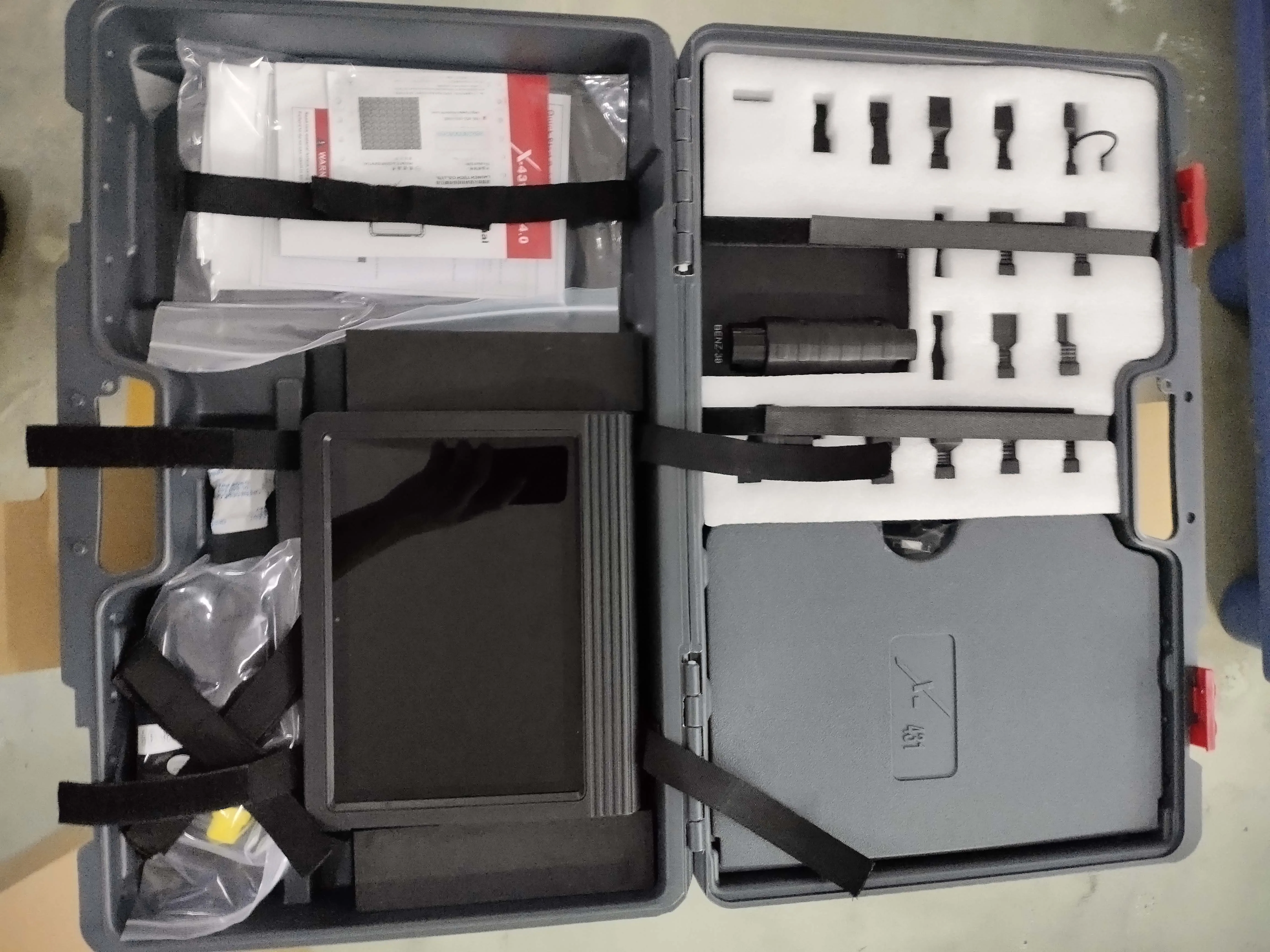

Real Shot of the X431 V+ V4.0
